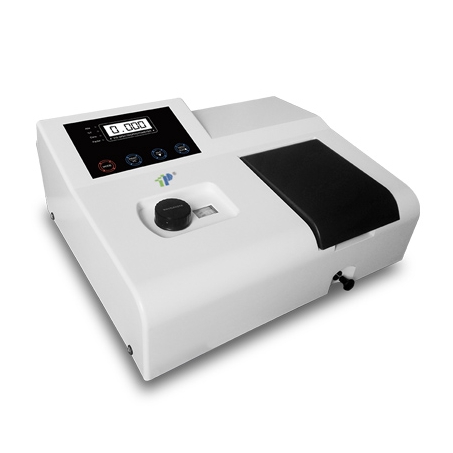

The Visible Spectrophotometer can be widely used in medical and health, clinical testing, biochemistry, petrochemical, environmental protection, quality control, judicial criminal investigation, inspection, quarantine, forestry, geological exploration, food testing and other industries. It is one of the analytical instruments reused in physical and chemical laboratories.
Features:
- Digital display of measurement indications.
- Automatic zero adjustment and automatic hundred adjustment.
- The large sample chamber can accommodate 5-100mm cuvettes.
- The optional output port RS232 can realize the function of connecting to a printer and a computer.
- The original imported tungsten lamp is used to ensure the service life of the instrument.
- The instrument adopts the latest microcomputer processing technology and is easy to operate.
- The automatic light gate ensures the service life of the photoelectric sensor, and the instrument test is simpler.
Specification:
| Optical system | Achromatic (1200/mm grating) |
| Wavelength range | 320-1020nm |
| Wavelength accuracy | ±2nm |
| Spectral bandwidth | 6nm |
| Wavelength repeatability | ≤1nm |
| Transmittance accuracy | ±1%T |
| Stability | ±0.004A/h@500nm |
| Drift | ≤0.2%T |
| Noise | ≤0.3%T |
| Working mode | T,A,C |
| Zero adjustment method | Automatic |
| Weight | 8kg |
| Output mode | No |
| Light source | Domestic tungsten lamp |
| Printing interface | Optional |
| Photometric range | 0-200%T，-3-3A,0-9999C |
