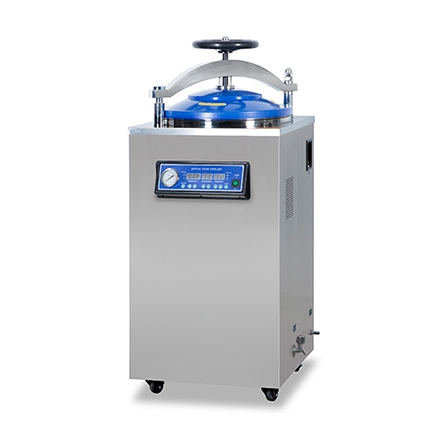

Top Lab Equip
Features:
- Hand wheel translation and quick opening structure.
- High quality stainless steel material.
- Microcomputer automatic control, arbitrary setting sterilization parameters.
- Safety interlocking device.
- Digital display and Touch buttons.
- Standard test interface.
- Self-expanding seal.
- With drying function.
- With automatic protection function:over temperature protection; over pressure protection; low water level protection; anti dry burmning.
- With stainless steel bucket or basket.
- Buzzer reminder after sterilization, automatic stop.
- Automatic discharge of cold air,automatic steam exhaust after sterilization.
*Optional external printer
Specification:
| Model | TGL-35G | TGL-50G | TGL-75G | TGL-100G |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC220V、50HZ | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature setting range | 50℃~134℃ | |||
| Sterilization time setting range | 4~120 min | |||
| Drying time setting range | 0~240 min | |||
| Chamber volume | Φ350*400 | Φ350*525 | Φ400*625 | Φ450*650 |
| Bucket dimension | Φ330*320 | Φ330*460 | Φ380*560 | Φ420*540 |
| Basket dimension | Φ320*350 | Φ320*240*2 | Φ360*280*2 | Φ410*300*2 |
| Outer dimension | 498*498*940 | 498*498*1110 | 570*570*1185 | 588*588*1255 |
| Packing size (L*W*H) | 580*630*1130 | 580*630*1230 | 630*680*1290 | 690*650*1470 |
| Gross/net weight | 79/58KG | 106/80KG | 120/90KG | 133/106KG |
