Vertical Laminar Flow Clean Bench provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.
Vertical Laminar Flow Clean Benchs also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Features:
- Arbitrary positioning sliding door system is adopted.
- The shell is welded by cold-rolled plate, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
- Safety interlocking of lighting and sterilization system, and UV lamp timing function.
- Digital display LCD control interface, more humanized design.
- The vertical quasi-closed table top and the formation of the downflow air curtain in the operation room can effectively prevent the external gas from entering and clean the operation area.
- Equipped with a HEPA high-efficiency air filter and a primary filter for preliminary filtration, which can effectively prolong the service life of the high-efficiency filter.
Specification:
| Model | T-CJ-1F | T-CJ-2F | T-CJ-3F |

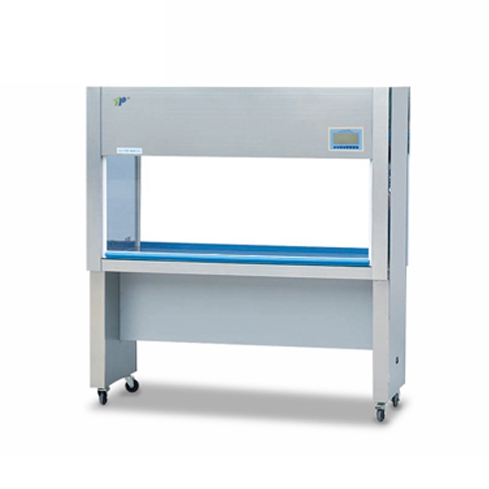

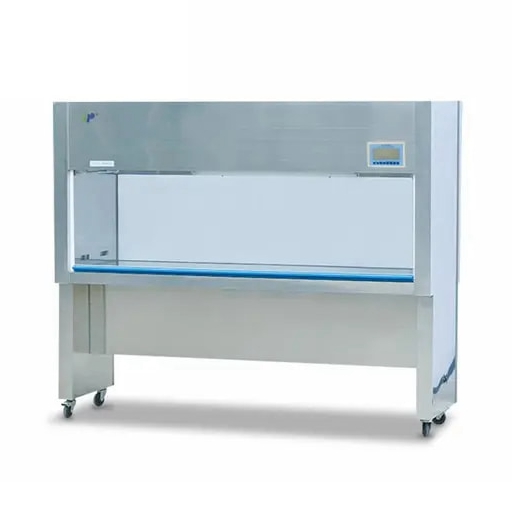

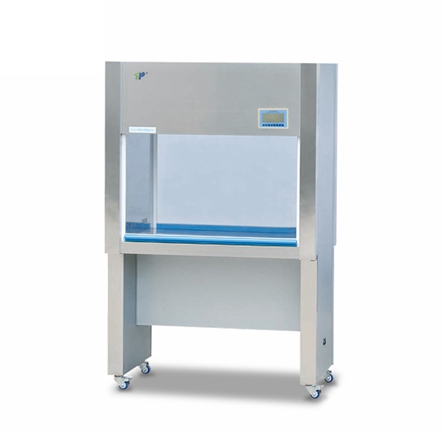

| Picture |  |
 |
 |
| Cleaning level | Grade 100≥0.5μM (209E U.S. Federal) | ||
| Number of bacteria | ≤5per utensil.hour (90mm utensil) | ||
| The average wind speed | 0.25~0.45m/s | ||
| Noise | ≤62dB (A) | ||
| Half ventilation peak value | ≤0.5μm (XYZ direction) | ||
| Illumination | ≥300LX | ||
| Power supply | AC, 220V/50Hz | ||
| Max. power consumption | 490W | 800W | 700W |
| Weight | 90kg | 160kg | 200kg |
| Dimension of working area(W1*D1*H1) | 880*650*580 | 1370*650*580 | 1800*650*580 |
| Overall dimension W*D*H | 1040*720*1600 | 1530*720*1600 | 1960*720*1600 |
| Suited number | Single person / Double side | Double person / Single side | Three people / Double side |
| Efficient filter specifications and quantities | 865*555*50*① | 1355*555*38*① | 1785*555*50*① |
| Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 12W*①/20W*① | 30W*① / 30W*① | 20W*①/36W*① |
