Vertical Laminar Flow Cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.
Most vertical laminar flow cabinets also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
TS-CJ-FB Series Vertical Laminar Flow Cabinet designed and made with international advanced technology, adopting fan system with air volume adjustable and matched with movable door free to locate. Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.
Features:
- Arbitrary positioning sliding door system is adopted.
- The shell adopts cold plate electrostatic spraying, and the working surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
- Safety interlock of lighting and sterilization system.
- Digital display LCD control interface, adjustable wind speed in three levels of fast, medium and slow, and UV lamp timing, more humanized design.
- It is equipped with a HEPA high-efficiency air filter and a primary filter for preliminary filtration, which can effectively prolong the service life of the high-efficiency filter.
- Comply with the safety requirements of various medical equipment.
Specification:
| Model | TS-CJ-1FB | TS-CJ-2FB |

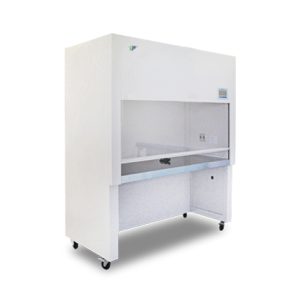

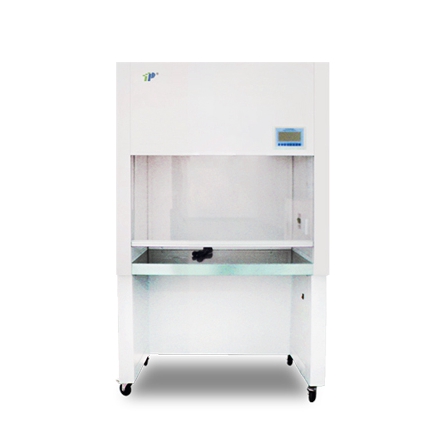

| Picture |  |
 |
| Cleaning level | Grade 100≥0.5μM (209E U.S. Federal) | |
| Number of bacteria | ≤0.5per utensil.hour (90mm utensil) | |
| The average wind speed | 0.25~0.45m/s | |
| Noise | ≤62dB (A) | |
| Half ventilation peak value | ≤5μm (XYZ direction) | |
| Illumination | ≥300LX | |
| Power supply | AC, 220V/50Hz | |
| Maximum power | 500W | 600W |
| Weight | 90kg | 140kg |
| Dimension of working area (W1*D1*H1) | 870*520*620mm | 1325*520*620mm |
| Overall dimension (W*D*H) | 1030*740*1800mm | 1485*740*1800mm |
| Suited number | Single Person / Single Side | Double Person / Single Side |
| Efficient filter specifications and quantities | 855*450*50*① | 1310*450*50*① |
| 820*565*50*① | 1275*565*50*① | |
| Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 20W*①/20W*① | 20W*①/20W*① |
