Vertical Laminar Flow Cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.
Most vertical laminar flow cabinets also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Features:
- The vertical closed bench can effectively prevent outer gas from entering and preventing peculiar smell in operating area from damaging human body.
- vertical air clean bench/class100 laminar flow cabinet adopts wind volume adjustable fan system, light-touch type switch and dual-speed voltage regulation device to keep wind speed in working area in ideal state.
- The personalized design considers user’s demand completely. It adopts spring type sliding door so that the door can be oriented on needed position, thus it is more convenient to operate.
- vertical air clean bench/class100 laminar flow cabinet is the newest type bench in present market. The front cover may be opened directly for exchanging filter, electric components easily.
- Operate with LED panel.
Specification:

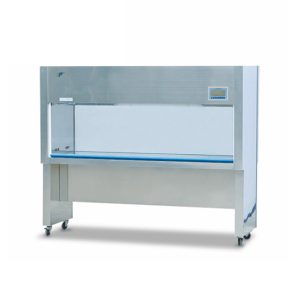

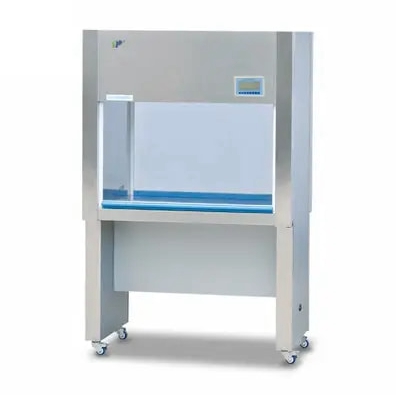

| Model | T-CJ-1FD | T-CJ-2FD | T-CJ-3FD |
| Picture |  |
 |
 |
| Cleaning level | Grade 100≥0.5μM (209E U.S. Federal) | ||
| Number of bacteria | ≤5per utensil.hour (90mm utensil) | ||
| The average wind speed | 0.25~0.45m/s | ||
| Noise | ≤62dB (A) | ||
| Half ventilation peak value | ≤0.5μm (XYZ direction) | ||
| Illumination | ≥300LX | ||
| Power supply | AC, 220V/50Hz | ||
| Max. power consumption | 490W | 800W | 700W |
| Weight | 90kg | 150KG | 200kg |
| Dimension of working area(W1*D1*H1) | 880*650*580 | 1370*650*580mm | 1800*650*580 |
| Overall dimension W*D*H | 1040*690*1600 | 1530*690*1600mm | 1960*690*1600 |
| Suited number | Single Person / Single Side | Double Person / Single Side | Three person / Single Side |
| Efficient filter specifications and quantities | 865*555*50*① | 1355*555*50*1① | 1785*555*50*① |
| Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 12W*①/20W*① | 12W*2/30W*② | 20W*①/36W*① |
