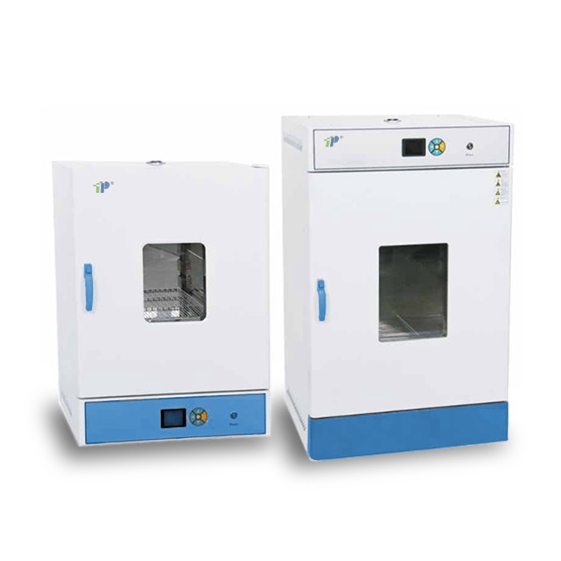

Forced Air Convection Oven

Drying ovens with forced air circulation, which are ideal for routine drying and heating applications when short drying times are required.

Model:TGL-BE Series

Type:Vertical

Volume (L):20L / 45L / 72L / 125L / 210L

Temperature (°C):RT+10-300℃

Power:600W / 1000W / 1500W / 2000W / 3000W

Material:Cold plate shell and stainless steel interior

Display:LCD display

  • Product Details

Features:

  • The shell of the product is processed by high-quality cold plate, and the surface is treated by spraying process.
  • The studio chooses 304 mirror stainless steel for processing and manufacturing.
  • Intelligent digital display PID temperature control instrument, with timing, over temperature alarm indication, temperature deviation correction, temperature control self-tuning and other functions.
  • Super large double-layer tempered glass observation window, easy to observe the changes of items in the box.
  • It adopts a new type of synthetic silica gel sealing strip, which has a beautiful appearance, can operate at high temperature for a long time, and has a longer service life.
  • The hot air circulation system adopts a low-noise self-cooling fan to ensure a longer service life of the fan and a more uniform temperature in the box.
  • The equipment is equipped with a fan speed regulating switch, and the user can adjust the fan speed or automatic fan speed according to the needs.
  • It can be equipped with LCD instrument, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.

Tips: After the fan is turned off, the temperature in the working room will deviate greatly, and the fan should not be turned off without special circumstances.

Specification:

Model TGL-20BE TGL-45BE TGL-72BE TGL-125BE TGL-210BE
Capacity 20L 45L 72L 125L 210L
Power supply 220V 50HZ
Temperature control range RT+10-300℃
Temperature resolution 0.1℃
Temperature fluctuation ±1°C
Power 600W 1000W 1500W 2000W 3000W
Studio Size (D*W*H) mm 260*280*280 350*360*350 400*400*450 450*500*550 500*600*700
Dimensions (D*W*H) mm 450*420*590 550*495*700 590*535*800 650*635*1040 705*735*1190
Package size (D*W*H) mm 510*490*690 600*550*790 650*600*880 720*700*1130 790*750*1280
Net weight/gross weight KG 24/27 38/46 47/55 71/81 85/97
