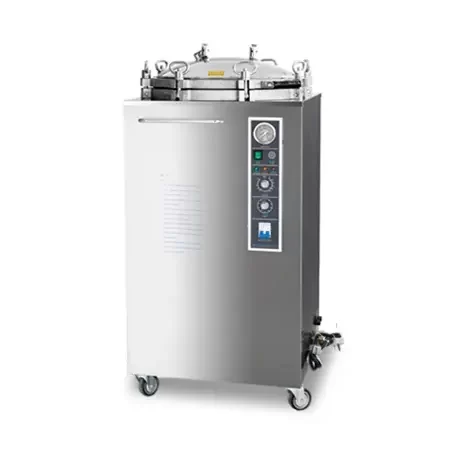

Vertical Autoclave 35/50/75/100/120/150L

Vertical Autoclave is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste. It uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect.

Model:TLX-B Series

Type:Large capacity, vertical

Volume:35L , 50L , 75L , 100L , 120L , 150L

Temperature Range:115℃-129℃

Time Range:0-9999min

Chamber Size:Φ300*485mm , Φ320*545mm , Φ388*480mm , Φ388*630mm ,Φ460*590mm ,Φ460*700mm

Material:Full SUS 304 stainless steel

Display:Knob+dial+indicator light

  • Product Details

Vertical Autoclave Features:

  • Full SUS 304 stainless steel structure
  • Accurate dual scale indicate pressure gauge
  • Silicone seal ensuring no steam leakage
  • Spin buttons to set sterilization temperature and time
  • Blue, orange and red light showing work status
  • Automatic release when overpressure
  • Water shortage and over heating protection
  • Drying action can be added(Best large than 75L volume)

Vertical Autoclave Specification:

Technical Data Model TLX-B35L TLX-B50L TLX-B75L TLX-B100L TLX-B120L TLX-B150L
Volume 35L 50L 75L 100L 120L 150L
Max Working Pressure 0.165Mpa 0.165Mpa 0.165Mpa 0.165Mpa 0.165Mpa 0.165Mpa
Time Range 0-80min 0-80min 0-80min 0-80min 0-80min 0-80min
Temperature Range 115℃-129℃ 115℃-129℃ 115℃-129℃ 115℃-129℃ 115℃-129℃ 115℃-129℃
Sterilization Chamber Φ300*485mm Φ320*545mm Φ388*480mm Φ388*630mm Φ460*590mm Φ460*700mm
Power AC220V/50Hz/
2.5KW
AC220V/50Hz/
2.5KW
AC220V/50Hz/
3.5KW
AC220V/50Hz/
4.0KW
AC220V/50Hz/
4.0KW
AC220V/50Hz/
4.0KW
