Thermostatic Water Bath PXG Series

This Thermostatic water bath is designed to have a large capacity and is made entirely of stainless steel, making it resistant to corrosion and easy to clean. The large capacity makes it ideal for experiments that require a high volume of samples or materials to be tested simultaneously.

PXG Series

Circulating water pump:Inner loop ( default ) or Outer loop

Temp. range:RT~100℃

Temp. fluctuation:±0.1℃

Working volume:48L ~ 2000L

Over temperature alarm:Yes

Material:SUS304 stainless steel material

  • Product Details
  • Download

Features:

  • Newly designed precision constant temperature control system, the temperature of the entire measuring range is accurately controllable, suitable for sample storage, analysis, testing and measurement identification above ambient temperature, as well as the needs of enterprise production.
  • Digital display of set temperature and actual temperature, setting resolution ±0.1℃.
  • The use of self-designed and developed high-power, high-stability, and long-life heating devices ensures safe, efficient, and long-term operation of the system.
  • The instrument’s working status and key function indication functions are easy to operate and clearly displayed.
  • Over-temperature protection, sensor open circuit, short circuit protection and other functions ensure the safe operation of the instrument.
  • The large-capacity liquid tank liner, work surface, electric heater and other parts that may come into contact with the working medium are made of 304 stainless steel, which is durable.
  • The external body is made of 304 stainless steel material technology, making the appearance more beautiful and elegant.
  • High-quality thermal insulation technology can effectively reduce the heat loss inside the bath, save electricity and energy, and make the temperature field inside the bath more uniform.
  • High-strength universal wheel feet with locking device can be easily moved and fixed to a suitable position.
  • Equipped with a high-performance circulation pump to help achieve temperature uniformity in the tank. The pump flow rate is 20L/MIN within BXG-250, and 50L/MIN above this specification. The default is internal circulation, and external circulation is also optional.

Specification:

Model Working size (MM) Overall dimensions (MM) Heating power Cycle mode Temperature control range Voltage

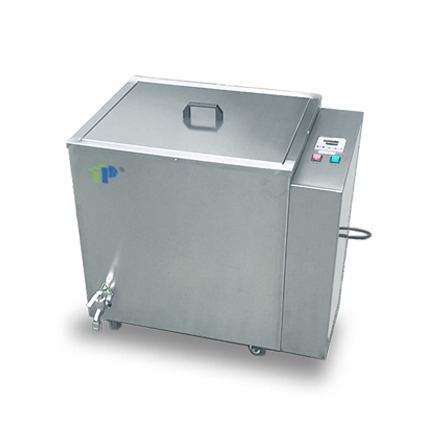

PXG-50 400*400*300 670*470*400 2KW Internal circulation Room temperature -100 degrees 220V
PXG-80 400*400*500 670*470*600 3KW Internal circulation Room temperature -100 degrees 220V
PXG-100 500*500*400 770*570*500 4KW Internal circulation Room temperature -100 degrees 220V
PXG-150 550*550*500 820*620*600 6KW Internal circulation Room temperature -100 degrees 380V
PXG-200 600*600*500 870*670*600 9KW Internal circulation Room temperature -100 degrees 380V

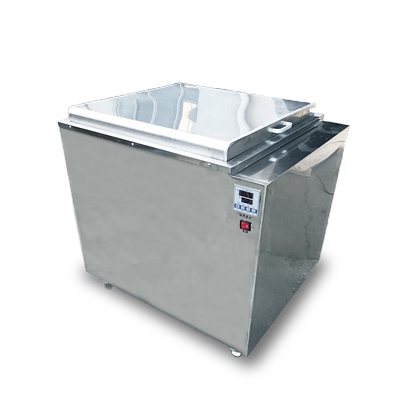

PXG-250 680*680*550 950*750*650 9KW Internal circulation Room temperature -100 degrees 380V
PXG-300 800*800*500 1070*870*650 9KW Internal circulation Room temperature -100 degrees 380V
PXG-350 800*800*550 1070*870*700 12KW Internal circulation Room temperature -100 degrees 380V
PXG-400 900*900*560 1170*970*710 12KW Internal circulation Room temperature -100 degrees 380V
PXG-450 1000*1000*450 1270*1070*600 12KW Internal circulation Room temperature -100 degrees 380V
PXG-500 1000*1000*500 1270*1070*650 15KW Internal circulation Room temperature -100 degrees 380V
PXG-600 1000*1000*600 1270*1070*750 15KW Internal circulation Room temperature -100 degrees 380V
PXG-700 1000*1000*700 1270*1070*850 15KW Internal circulation Room temperature -100 degrees 380V
PXG-800 1000*1000*800 1270*1070*950 18KW Internal circulation Room temperature -100 degrees 380V
PXG-900 1000*1000*900 1270*1070*1050 18KW Internal circulation Room temperature -100 degrees 380V
PXG-1000 1000*1000*1000 1300*1100*1200 18KW Internal circulation Room temperature -100 degrees 380V
PXG-1500 1500*1000*1000 1800*1100*1200 24KW Internal circulation Room temperature -100 degrees 380V
PXG-2000 2000*1000*1000 2300*1100*1200 30KW Internal circulation Room temperature -100 degrees 380V

Note: Most of this product is customized. You can call to customize it according to your own needs.

PXG Series CONSTANT TEMPERATURE WATER BATH
