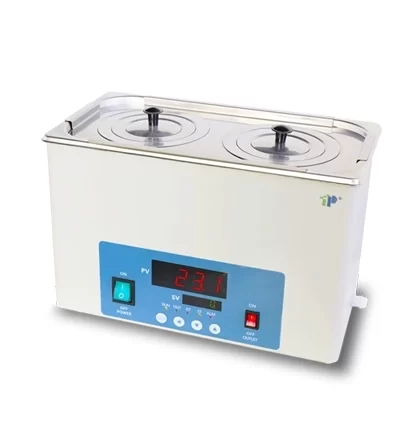

Thermostatic Water Bath

Thermostatic water bath is a laboratory equipment used to incubate samples in water at a constant temperature. Our water bath has safety features such as over-temperature protection and low-liquid level detection.

PK-2000-IIIL

Number of holes:1 hole , 2 holes , 4 holes , 6 holes

Temp. Range:RT+5~ 100℃

Temp. Uniformity:±0.5℃

Volume:3.4L, 6.1L, 14.6L, 22.5L

Over temperature alarm:Yes

Material:Anti corrosion process ( Shell ) High quality stainless steel ( Inner liner )

  • Product Details
  • Download

Features:

  • Cold rolling steel spraying exterior.
  • Stainless steel stretching inner container and roof cover; Fabrication processed exterior of anti-corrosion and anti-leakage.
  • Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.

Specification:

Classification Specifications 1 hole 1 row& 2 holes 2 rows & 4holes 2 rows& 6 holes
Model PK-2000-IIIL
Heating Mode Nature water convection heat transfer
Function Temp.Range RT+5~100℃
Temp. Resolution Ratio 0.1℃
Temp. Motion ±0.5℃
Temp. Uniformity ±1.0℃
Sinucture Inner  Chamber Stainless steel
Outer Shel Cold -rolled steel plate, resistance to chemical reagents coating on the surface
Heater Stainless steel heating tube
Power Rating 0.4kW 0.5kW 1.0kW 1.5kW
Controller Temp. Control Mode PID
Temp. Setting Mode Touch button setting
Temp.Display  Mode Measuring temperature displays on the three digital tubes upper row, set temperature
displays on the lower row
Timer 0~9999min(with timing wait function)
Operation Function Fixed temperature operation, timing function, auto stop.
Program  Mode Optional
Additional Function Deviation Correction, menu key locked, power failure back-up, power-off memory
Sensor NTC
Safety Device Over temperature alarm
Specification Inner Chamber Size (W”L”H)(mm) 150*135*150 300*135*150 325*300*150 500*300*150
Exterior Size (W”L”H)(mm) 170*154*210 318″168″210 350*318*210 524*322*210
Packing Size (W”L”H)(mm) 240*230*280 390*240*280 420*390*280 600*390*280
Volume 3.4L 6.1L 14.6L 22.5L
Load Per Rack 5kg
Shelf Number 1
Power Supply (50/60Hz)Current Rating AC220V/1.8A AC220V/2.3A AC220V/4.5A AC220V/6.8A
NW/GW (kg) 3.3/4 4.5/5 6/7 7.5/9

PK-2000-IIIL LABORATORY THERMOSTATIC WATER BATH
