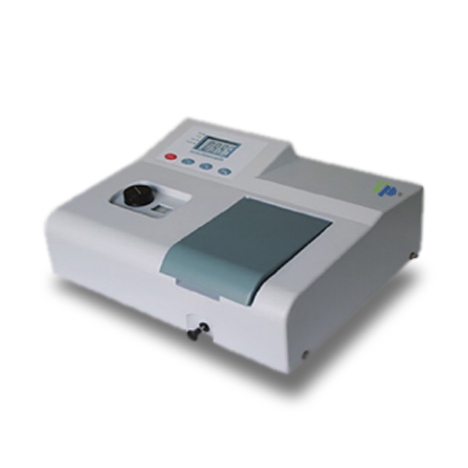

This Visible Spectrophotometer is a simple single beam spectrophotometer. Low price and simple design make the model ideal tool foreducation or routine analysis .
Features:
- Simple single beam spectrophotometer.
- The wavelength is set manually from the dial on thefront panel.
- Direct readout of transmission or absorption on the LED display.
- Measured values can betransferred to PC via RS232 port for further analysis.
Specification:
| Model | PV1000 | PV1100 |
| Optical System | Single Beam,Grating1200lines/mm | |
| Wavelength Range | 340-1020 nm | 330-1020 nm |
| Spectral Bandwidth | 6 nm | 5 nm |
| Wavelength Accuracy | ±3nm | ±2nm |
| Wavelength Repeatability | 1nm | |
| Photometric Accuracy | ±1%T | ±0.5%T |
| Photometric Repeatability | 0.5%T | 0.2%T |
| Photometric Range | 0-200%T-0.3-3A | |
| Stray light | 0.5%T | 0.3%T |
| Stability | 0.004A | 0.002A |
| Baseline Flatness | ±0.002A | ±0.002A |
| Noise | ±0.001A | |
| Wavelength Setting | Manual | |
| Work Mode | T, A, C | |
| Light Source | Tungsten lamp | |
| Display | 4 LCD | |
| Detector | Silicon Photodiode | |
| Output | RS-232 port | |
| Power | AC 220V/50Hz or AC 110V/60Hz | |
| shipping Size | 520*450*320mm | |
| Gross Weight | 10kg | |
