China Leading Laboratory Equipment Supplier

16  Years Lab Equipment & Instrument Manufacturer

Portable COD Analyzer

Model:PCOD-810

Measurement range:COD: 5~2000mg/L, measured over dilution

Indication error:COD: ≤ ± 5 %

Repeatability:≤3%

Temperature control system:can be set at room temperature ~180°C, COD digestion temperature is 165 °C

  • Product Details
  • Packing List
  • Download

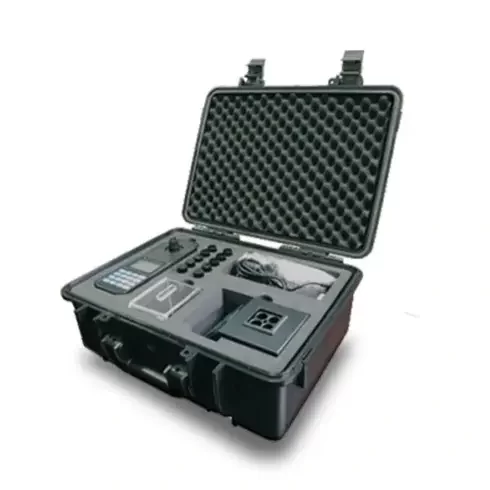

The Portable COD Analyzer is the use of sealed catalytic digestion, and then colorimetric measurements. The instrument uses advanced, narrowband interference technology.

Features:

  • Analyzer apart with digestion device, does not affect measurement accuracy. PID automatic temperature control, automatic timing.
  • High-performance ultra-low power 16-bit microcontroller, standby time of the instrument is up to six months or more.
  • Operation save time, COD digestion just 10min.
  • Cold light, narrowband interference optical system, good optical stability.
  • Data power protection.
  • COD can be saved for each standard curve 50 and 199 measured values (with a time label with the year, month, day, hour, minute and second values of COD, absorbance and transmittance)
  • With a USB port, you can join the computer to record read.
  • LCD large-screen LCD for easy and intuitive operation.
  • Host chassis with molded ABS material, IP65 design, waterproof and dustproof performance.
  • With calibration tube function, eliminating the optical differences digestion tubes, to ensure accuracy.
  • Optional printing function and emergency backup battery.

Specification:

Measurement range: COD: 5~2000mg/L, measured over dilution Indication error: COD: ≤ ± 5 %
Repeatability: ≤3% Anti-chlorine interference: ≤2000mg/L
Temperature control accuracy: ±1 °C Temperature control system: can be set at room temperature ~180°C, COD digestion temperature is 165 °C
digestion time: COD is 10min Temperature control time: adjustable from 1 to 9999min
Batch volume: 4 water samples (or choose 16 water samples) Optical stability: the instrument absorbance value drifts less than 0.002A within 20min
Power consumption: current <40uA; digester power consumption: <65W Weight: Main unit 0.5kg;digestion instrument 1kg
Dimensions: measuring instrument 80mm*230mm*55mm;Digestion instrument 105mm*160mm*90mm
Normal use conditions:
Ambient temperature: 5 to 40 ° C Relative humidity: ≤85%
Power supply: Host: AA Battery*4

Digestion instrument: car cigarette lighter or 220V power supply (or optional battery power supply)

No significant vibration and electromagnetic interference, avoid direct sunlight.
Name Quantity Name Quantity
Host 1 Digestion instrument 1
Digestion colorimetric tubes 10 Tube rack 1
Cod reagent 1 set Digestion shield 1
Portable case 1 AC / DC converter (220V / 12V) 1
Operation manual 1 Product certificate 1
Warranty card 1 Car cigarette lighter cable 1

PCOD-810 PORTABLE COD ANALYZER WITH DIGESTER
