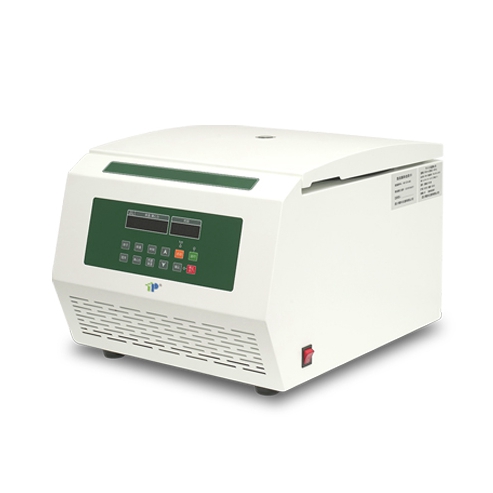

Benchtop Low Speed Multi-pipe Centrifuge

The machine adopts frequency conversion driving, digital display, stainless steel centrifugal chamber, electronic safety locks and protection for imbalance. It can store procedures in common use and 9 levels of acceleration and deceleration for your choice. Faults are recognized automatically. Operation parameters of instruments such as rotate speed, centrifugal force and time can be modified in operation. The operation is easy. The machine runs evenly, has stable performance and is safety and reliable.

Model: TD-5Z

Type:Benchtop

Maximum speed:5000 r/min

Max. RCF:4650*g

Maximum capacity:8*100ml (4000rpm)

Temperature control:No

Display:LED

Operation:Touch buttons

  • Product Details
  • Rotor
  • Rotor Display
  • Download

Features:

  • Touch buttons; white digital tube display, clear and eye-friendly.
  • The program group number, rotor number, speed and time are displayed at the same time.
  • All-steel body, 304 stainless steel inner cavity, frequency conversion motor.
  • 100 sets of program storage, 20 gears for speed up and down.
  • Multi-segment centrifugation/conventional centrifugation mode can be switched arbitrarily; up to 5 multi-segment centrifugation can be set.
  • The timing range of centrifugation time is 1s ~ 99h59m59s; hour/minute or minute/second timing can be selected.
  • Electronic safety door lock control, chord sound prompts the door opening and closing status.
  • RCF can be set and displayed directly without RPM/RCF conversion.
  • The speed, centrifugal force, time and other parameters can be changed during operation.
  • Automatic fault diagnosis.

Specification:

Maximum speed 5000 r/min
Max. RCF 4650*g
Maximum capacity 8*100ml (4000rpm)
Speed accuracy ±10 r/min
Timing range 1min~99H59 min
Noise ≤60dB (A)
Power supply AC 220V 50HZ 10A
Power 500W
Dimensions 550*430*350(L*W*H)mm
Weight 40kg
Rotor Capacity Maximum speed Maximum centrifugal force
No. 1 Horizontal rotor 4*100ml 5000rpm 4650*g
4*50ml
No. 2 Horizontal rotor 8*50ml 4000rpm 2980*g
8*100ml
24*15ml (can be equipped with various vacuum tube adapters)
32*15ml (can be equipped with various vacuum tube adapters)
48*2~7ml vacuum tube
No. 3 Enzyme labeled horizontal rotor 2*3*96 holes 4000rpm 1970*g
NO.T.04.100H NO.T.04.050H
NO.T.32.015H NO.T.24.015H
NO.T.08.050H NO.T.08.100H
NO.T.48.2.7H NO.T.02.03.96H

TD-5Z MULTI-PIPE LOW SPEED CENTRIFUGE
