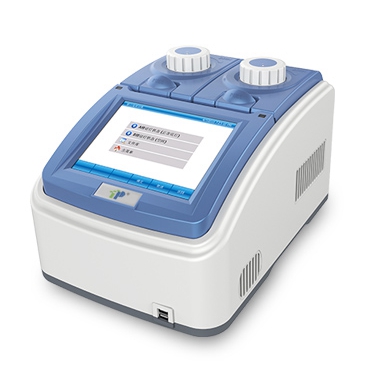

Multi Block Thermal Cycler

The Thermal Cycler TE T series uses customized Marlow(US) peltier. Its max. ramping rate is 5 ℃/s and cycle times is more than 1000,000. The product combines a variety of advanced technologies: Android operating system, color capacitive touch screen, run dual block independently, Built-in WIFI module, mobile APP and PC software control function, big storage capacity and email alert function. All above functions allow PCR’s excellent performance and meet higher experiment’s need.

Features:

• 8 pcs long service life Peltier heating units and form 4 circuits to control 4 temperature zones and allow double block gradient function.
• Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
• High heating and cooling rate, max. Ramping rate 5 ℃/s, can save your precious time.
• Two blocks independently controlled and can run 2 different PCR programs simultaneously.
• Stepless adjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation.
• Android operating system, capacitive touch screen, high-definition TFT display (8”, 800*600 pixels, 16 colors) with graphical interface provides easy use for setting up and monitoring.
• Built-in 11 standard program file template, can quickly edit the required files.
• Folder management, user can build directory.
• The running program and left time can be displayed in real time , allow to edit file when program is running.
• One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
• Internal flash memory for 10000 typical PCR files in free configurable folders.
• Hot lid temperature and hot lid work mode can be set to meet different experiment’s need.
• Automatic restart after power failure. When power is restored it can continue to run unfinished program.
• GLP report records every step to provide accurate data support for experiment result analysis.
• User Login Management, three-tier permission, password protection function to ensure data security.
• Support U disk to get PCR data, to update software, and USB mouse can also be used to control the PCR instrument.
• Built-in WIFI module, one machine can control multiple PCR machines at the same time through mobile APP or PC software;
• Support email-alert function when experiment is over.

Specification:
