Features:

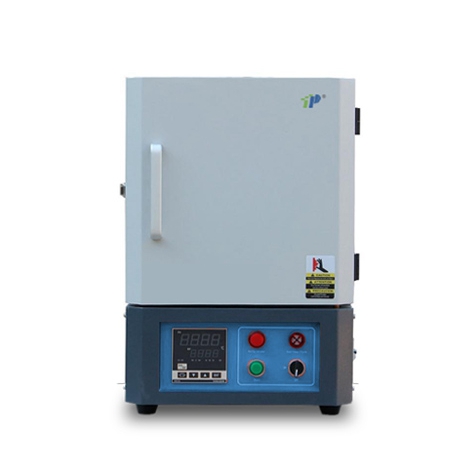

Elevate your high-temperature processes with Top Instrument Muffle Furnace 1200℃ Series.
Designed for maximum performance and reliability, the TM Series boasts a Tmax of 1200°C, ensuring it meets the demands of even the most challenging applications. Featuring a fiber-insulated chamber, heating elements embedded on three sides, and a long-life Type N thermocouple, temperature stability and uniformity are guaranteed. Take control of your heating process with the programmable digital temperature controller, offering 32 segments for precise temperature profiles.
Plus, rest assured with our CE certification, providing peace of mind that our furnace meets stringent safety standards.
Overall, these features make the Muffle Furnace 1200℃ Series a reliable and versatile solution for various high-temperature applications, providing precise temperature control, uniform heating, and long-term durability.
Specification:
| Model | TM L5/12 | TM L12/12 | TM L30/12 |
| Max temperature | 1200 degree C | ||
| Chamber size | 200*150*150mm (4.5L) | 300*200*200mm (12L) | 500*300*200mm (30L) |
| Heating element | HRE Alloy wire | ||
| Heating sides | 3 | ||
| Input | 220V ,1 phase | 220V, 1 phase | 380V, 3 phase |
| Maximum output | 3KW | 4KW | 7.5KW |
| Temperature controller | Yudian controller (Shimaden is optional) | ||
| Thermal couple | N type | ||
| CE certificate | Yes | ||
| Warranty | 18 months | ||
