Magnetic Stirrer is a laboratory device that utilizes a magnetic field to stir and mix liquids. It features a square-shaped heating plate with a magnetic stir bar that spins when placed in the liquid. This stirrer is designed to be compact and affordable, making it ideal for small-scale experiments and educational settings. The device is easy to use and can be adjusted for different speeds and mixing intensities.

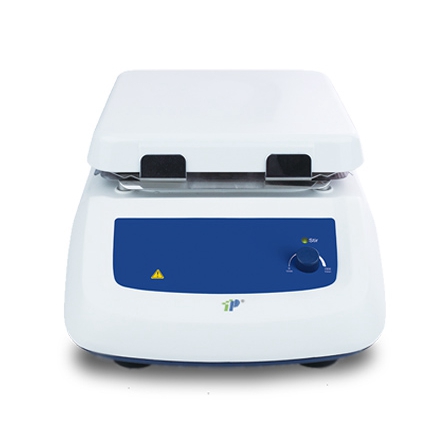

Model: P7-S

Work plate size:184*184mm(7inch)

Work plate material:Glass ceramic

Max. stirring volume:10L

Speed range:0-1500rpm

Display:No

Data interface:No

Support clamp & temperature sensor: Optional

Send Inquiry Seed E-mail

Product Details
Accessories

Features:

Speed adjustable from 0-1500rpm with a simple dial knob.
Max. stirring capacity of 10L[H20].
Ceramic workplate highly resistance to chemical erosion.

Specification:

Workplate dimension[W*D]	184*184mm(7inch)
Workplate material	Glass ceramic
Motor type	Shaded pole motor
Motor rating input	15W
Motor rating output	1.5W
Power	30W
Voltage	100-120/200-240V, 50/60Hz
Stirring positions	1
Max. stirring volume[H2O]	10L
Max. magnetic bar[length]	80mm
Speed range	0-1500rpm
Speed display	Dial
Protection class	IP21
Dimension[WDH]	215360112mm
Weight	3.8kg
Permissible ambient temperature and humidity	5-40*C80% RH


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)
