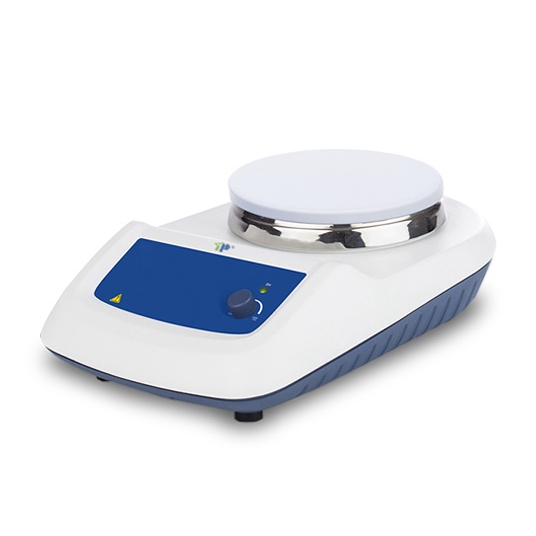

Magnetic Stirrer

Magnetic Stirrer is a laboratory device that utilizes a direct current (DC) motor to stir and mix liquids. This stirrer is designed to be compact and affordable, making it ideal for small-scale experiments and educational settings. The device is easy to use and can be adjusted for different speeds and mixing intensities. It is commonly used in scientific research, medical laboratories, and industrial applications.

Model: P-S

Work plate size:φ135mm (5 inch)

Work plate material:Stainless steel coated with ceramic

Max. stirring volume:20L

Speed range:0-1500rpm

Display:No

Data interface:No

Support clamp & temperature sensor: Optional

Send Inquiry Seed E-mail

Product Details
Accessories

Features:

Speed adjustable from 0-1500rpm with a simple dial knob.
Max. stirring capacity of 20L[H20].
Stainless steel ceramic workplate which can provide good chemical resistance.

Specification:

Workplate dimension [W*D]	φ135mm (5 inch)
Workplate material	Stainless steel coated with ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	30W
Voltage	100-240V, 50/60Hz
Stirring positions	1
Max. stirring volume [H2O]	20L
Max. magnetic bar [length]	80mm
Speed range	0-1500rpm
Speed display	Dial
Protection class	IP42
Dimension [WDH]	16028085mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40C, 80%RH


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)
