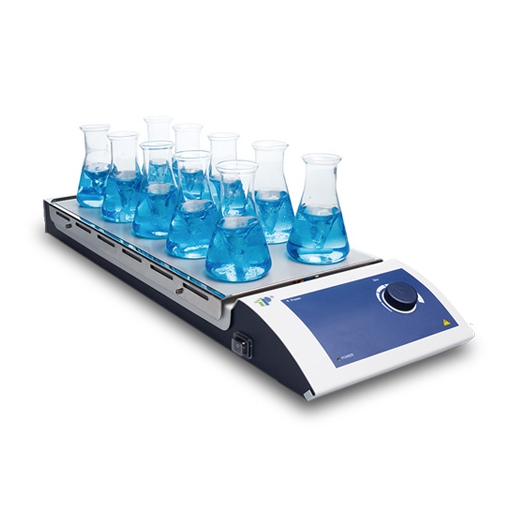

Magnetic Hotplate Stirrer, 0.4L×10 Multi-Position

This Magnetic Hotplate Stirrer designed for simultaneous heating and stirring of multiple samples. It features ten independent heating and stirring positions, each with its own adjustable heating power and magnetic stirrer. The device has a large heating plate that provides uniform heating across all positions. It also has an easy-to-use control panel that allows users to set temperature, stirring speed, and heating time for each position.

Model:P-H-S10

Work plate size:180*450mm

Work plate material:Stainless steel with silicone

Max. stirring volume:0.4L*10

Speed range:10-1100rpm

Heating temperature range:Room temp.-120°C

Temperature control accuracy:-

Display:No

Data interface:No

Support clamp & temperature sensor: Optional

  • Product Details
  • Accessories

Features:

  • Max. of 10 stirring positions on one workplate with an anti-slip silicone mat.
  • Stirring speed setting range: 0-1100rpm.
  • Single temperature setting at all positions from 0-120°C.
  • 490W powerful brushless DC motor.

Specification:

Workplate dimension [W*D] 180*450mm
Workplate material Stainless steel with silicone
Motor type Brushless DC motor
Motor rating input 12W
Motor rating output 4W
Power 490W
Heating output 470W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 10
Max. stirring volume 0.4L*10
Max. magnetic bar [length] 40mm
Speed range 0-1100rpm
Speed display Dial
Temperature display Dial
Heating temperature range Room temp.-120°C
Overheating protection 140°C
Protection class IP42
Dimension [W*D*H] 182*622*65mm
Weight 3.2kg
Permissible ambient temperature and humidity 5-40C, 80%RH
Blue carrying plate (18900001) Blue Fixed ring(18900065) Red quarter pie (18900002) Purple quarter pie (18900003)
Blue quarter pie(18900004) Black quarter pie (18900005) Green quarter pie (18900048) Golden quarter pie (18900049)
Reaction block for 50mL round bottom flask(18900080) Reaction block for 100mL round bottom flask (18900081) Reaction block for 250mL round bottom flask (18900082) Reaction block for 500mL round bottom flask (18900083)
F101 protective cover (18900019) PT1000-new PT1000-B (18900136) Support clamp of PT1000 (18900017)
