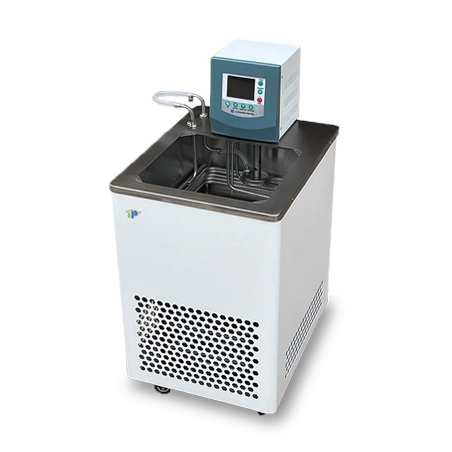

Low-temperature Constant Temperature Bath

The bath has a refrigeration system with a built-in temperature control mechanism, allowing for precise temperature regulation. It is a reliable and efficient option for labs with sample incubation needs that require precise low-temperature control and regulation, with the added benefit of external circulation to maintain uniform temperature throughout the bath.

Model:PHD Series

circulating water pump :Outer loop

Temp. Range ( ℃ ) :-5 ~100 , -10 ~100 , -20 ~100 , -40 ~100

Temp. Uniformity :±0. 5/0.05℃

Volume :7.5L ~ 29.9L

Over temperature alarm :Yes

  • Product Details
  • Download

Features:

Powered by a fully enclosed compressor unit, TOP INSTRUMENT Constant Low Temperature Temperature Bath boasts rapid cooling, minimal noise, and seamless operation. Easily cool test containers outside the machine by introducing coolant externally, offering unmatched versatility for your experiments.

Safety is paramount. That’s why our bath comes equipped with an over-temperature alarm system, ensuring your peace of mind throughout operation. Simplify your workflow with intuitive soft-touch keys, allowing effortless temperature adjustments. Meanwhile, the sleek window LED digital display provides clear visibility of both current temperature measurements and set values, guaranteeing accuracy at a glance.

With advanced microcomputer control, the PHD Series corrects temperature deviations with precision, boasting digital display accuracy up to 0.1°C/0.01°C. Plus, features like liquid level alarms and a dry burning prevention system elevate safety and reliability to new heights.

Elevate your laboratory standards with our Low Temperature Constant Temperature Bath – where precision, versatility, and safety converge for optimal scientific outcomes.

Specification:

Model Temperature range (°C) Temperature fluctuation (℃) Temperature resolution (℃) Working chamber size (mm) Tank depth (mm) Pump flow rate (L/min) Opening size (mm)
PHD-0506 -5~100 ±0.05 0.01 250*200*150 150 4 135*135
PHD-0510 250*200*200 200 8 135*135
PHD-0515 280*250*220 220 8 235*160
PHD-0520 280*250*280 280 10 235*160
PHD-0530 400*325*230 230 12 310*280
PHD-1006 -10~100 250*200*150 150 4 135*135
PHD-1010 250*200*200 200 8 135*135
PHD-1015 280*250*220 220 8 235*160
PHD-1020 280*250*280 280 10 235*160
PHD-1030 400*325*230 230 12 310*280
PHD-2006 -20~100 250*200*150 150 4 135*135
PHD-2010 250*200*200 200 8 135*135
PHD-2015 280*250*220 220 8 235*160
PHD-2020 280*250*280 280 10 235*160
PHD-2030 400*325*230 230 12 310*280
PHD-3006 -30~100 250*200*150 150 4 180*140
PHD-3010 250*200*200 200 8 180*140
PHD-3015 280*250*220 220 8 235*160
PHD-3020 280*250*280 280 10 235*160
PHD-3030 400*325*230 230 12 310*280
PHD-4006 -40~100 250*200*150 150 4 180*140
PHD-4010 250*200*200 200 8 180*140
PHD-4015 280*250*220 220 8 235*160
PHD-4020 280*250*280 280 10 235*160
PHD-4030 400*325*230 230 12 310*280

PHD Series LOW CONSTANT TEMPERATURE WATER BATH
