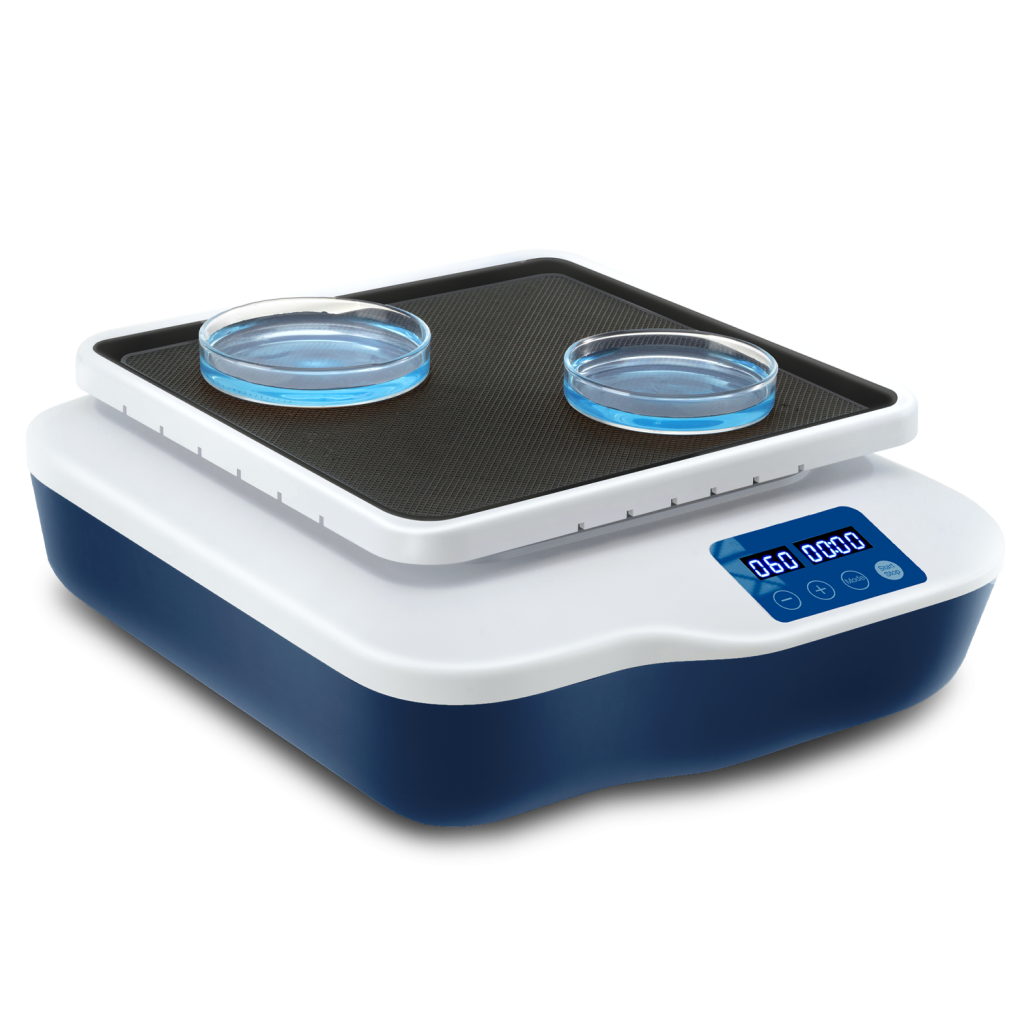

Orbital Shaker is used for mixing and shaking of samples in a controlled environment. It is commonly used in research labs, medical labs, and industrial settings for applications such as cell culture, bacterial culture, and other biological experiments. It is designed to be energy-efficient and cost-effective, making it a popular choice for labs with limited budgets.

Model:PK-O180-S

Shaking mode:Orbital motion

Orbital diameter:20mm

Max. load capacity:2kg

Speed range:40-200rpm

Display:LED

Time setting range:1min-99h59min

Interface:No

Optional fixing clip:available

Send Inquiry Seed E-mail

Product Details

Features:

Double-screen display for time and speed
respectively
Compact footprint
Provides smooth and uniform shaking
Two options：3.1kg and speed range 40-200rpm
Continuous or timer operation mode
Maintenance- free brushless DC motor
Over speed detection and protection

Specification:

Orbital diameter	20mm
Max. load capacity (with platform)	2kg
Motor type	Brushless DC motor
Motor rating input	20W
Motor rating output	16W
Speed range	40-200rpm
Speed display	LED
Timer display	LED
Time setting range	1min-99h59min
Voltage,Frequency	100-240V, 50/60Hz
Power	20W
Weight	3.1kg
Permissible ambient temperature and humidity	5-40℃, 80%RH
Dimension [WDH]	294348123mm
Protection class	IP21
Work plate Dimension [W x D]	268*268mm
