Features:
- Compact design and small footprint.
- Microprocessor PID control ensures powerful and consistent shaking motion.
- Load capacity up to 7.5Kg (O330) or 2.5Kg (O180) with platform.
- LCD digital control of speed and time.
- Programmable speed ranges from 100-500rpm.
- Easy-to-set digital timer from 1min-19h59min.
- High performance BLDC motor with overspeed detection.
- Variety of accessories suitable for most commonly used vessels.
- RS232 interface for data documentation and external control through PC.
Specification:

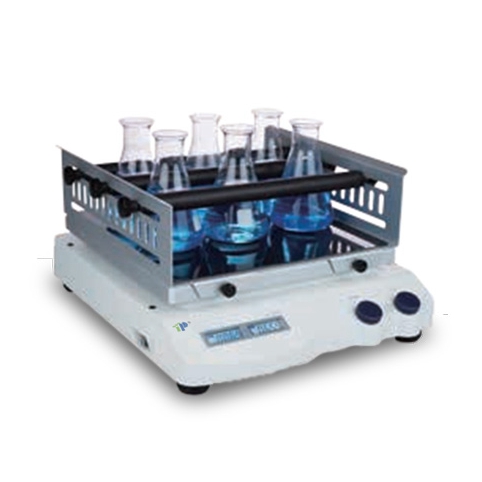

| Model | PK-O330-Pro | PK-O180-Pro |
| Orbital diameter | 10mm | 4mm |
| Max. load capacity (with platform) | 7.5kg | 2.5kg |
| Motor type | Brushless DC motor | Brushless DC motor |
| Motor rating input | 28W | 28W |
| Motor rating output | 15W | 15W |
| Speed range | 100-500rpm | 100-800rpm |
| Speed display | LCD | LCD |
| Timer display | LCD | LCD |
| Time setting range | 1min-19h59min | 1min-19h59min |
| Voltage | 100-240V, 50/60Hz | 100-240V, 50/60Hz |
| Power | 30W | 30W |
| Weight | 13.5kg | 8.1kg |
| Permissible ambient temperature and humidity | 5-40℃, 80%RH | 5-40℃, 80%RH |
| Dimension [W*D*H] | 370*420*100mm | 300*340*100mm |
| Protection class | IP21 | IP21 |
| Data interface | RS232 | RS232 |
