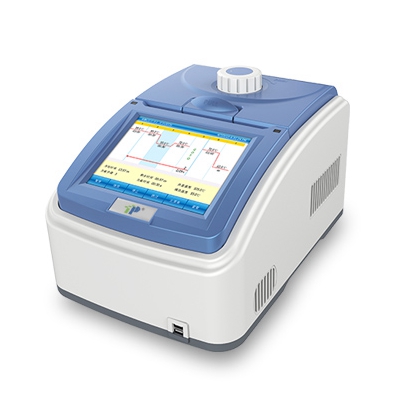

In-situ Thermal Cycler With One Click Rapid Incubation

In-situ Thermal Cycler adopts a long-life Peltier module specially designed for imported temperature cyclers, with a maximum temperature change rate greater than 4 ℃ per second and a cycle count greater than 1 million times. This product integrates multiple advanced technologies: Android operating system, color capacitive touch screen, multiple replaceable modules, built-in WIFI module, mobile APP and PC software control function, email reminder function, large data storage capacity and expansion function, etc.

Features:

• Six long-life Peltier modules dedicated to temperature cyclers, forming three sets of circuits that can independently control three temperature zones
• The engineering reinforced aluminum module treated with anodizing technology retains both rapid thermal conductivity and sufficient corrosion resistance
• Fast heating and cooling rate, with a maximum heating and cooling rate of 4 ℃/s
• The infinitely adjustable hot lid can adapt to test tubes of different heights and can be positioned at any angle after opening
• Android operating system, capacitive touch screen control, high-definition TFT display (8 inches, 800 × 600 pixels, 16 color true color), graphical menu style navigation interface, extremely simple operation
• Built in 11 standard program file templates for quick editing of required files
• The program adopts folder management and can create its own directory
• Real time display of program progress and remaining time, supporting intermediate programming during PCR instrument operation
• One click rapid incubation function, meeting the needs of denaturation, enzyme digestion/ligation, ELISA and other experiments
• Large data storage capacity, capable of storing up to 10000 files on the machine
• The temperature and working mode of the hot cover can be set to meet different experimental needs
• Automatic power-off protection, automatically executes incomplete cycles after power restoration, ensuring safe operation of the entire amplification process
• GLP experiment report records the running information of each step of the program, providing accurate data support for the analysis of experimental results
• User login management, three-level permissions, password protection function, ensuring data security
• USB interface, supports USB inventory/retrieval of PCR data, supports updating software with USB flash drive, and can also control PCR instrument with USB mouse
• Equipped with a built-in WIFI module, multiple PCR machines can be controlled simultaneously through a mobile app or PC software
• Support the function of sending email reminders when the experimental program ends

Specification:
