Illumination Incubator - Top Lab Equip

lab incubators/

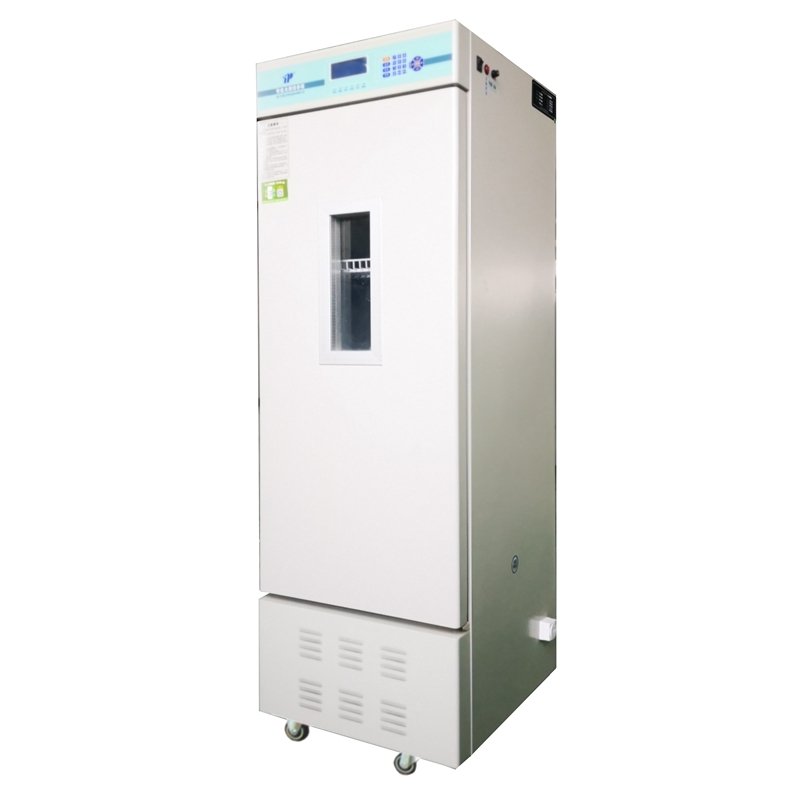

Illumination Incubator

Intelligent Illumination Incubator is a special-purpose thermostat and humidistat equipment which simulate natural light condition. It mainly provides a stable temperature, humidity and light environment for test samples, accurately simulates the temperature, humidity and light intensity.

GTOP Illumination Incubator adopts microcomputer automatic control system, programmable control mode, and intermitting cooling. Through setting the multiple parameters, it is able to mimic a natural environment. It has illumination, temperature –constant, day and night shift automatically functioning. It is able to meet various biological incubation tests.

Optional capacity: 158L, 268L, 310L, 500L, 1000L

Volume:150L, 268L, 310L, 500L, 1000L

Temp control range:0~50℃

Temp fluctuation:±0.5°C

Temperaturer unifomity:±1°C

Illumination range:0~5000lux 0~8000lux 0~12000lux

Illumination adjustment:0~10 level

  • Product Details
  • Download

Illumination Incubator

Features:

  • Micro-computer control, integrated control panel. The parameters can be set are: time, temperature, light, humidity, period etc.
  • Over-temperature and sensor abnormality protection to ensure the equipment and sample safety.
  • Adopt LED light, beneficial to plant growth, disease resistance
  • A power-down protection, boot display after the state power of money, there are storage memory.
  • Aluminum alloy frame, silver color and be able to the aging and deformation. With lock-door to protect the sample from falling out.
  • The device with wheel, move easily.
  • Inside the incubator is grid structure, which can be adjusted as the sample’s length, it is very convenient and practical.
  • Duct-ventilated type with soft wind and uniformity temperature.
  • the material of tank: stainless steel
  • Anti-irradiation tempered- glass with coating to ensure a good insulation performance.
  • About the light. It can be customized by users required. Our standard light is 8000lux. The max light we can provide is 12000lux.
  • Optional capacity: 158L, 268L, 310L, 500L, 1000L

Technical parameters:

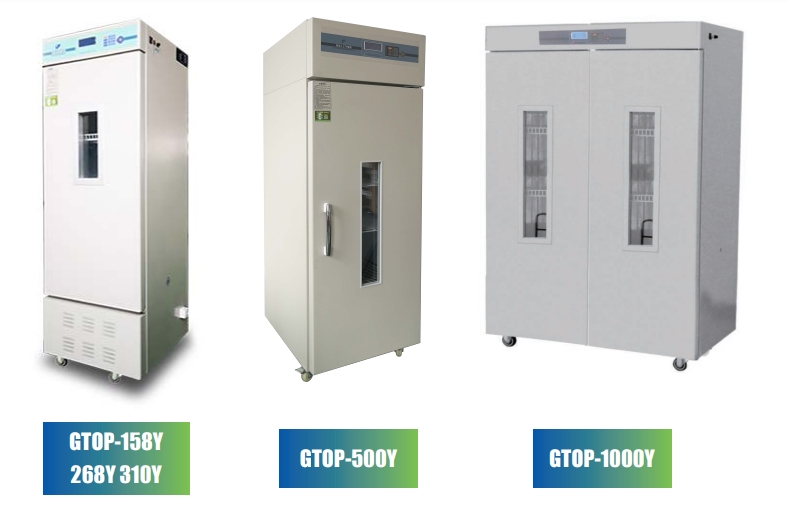

Model

GTOP-158Y

GTOP-268Y

GTOP-310Y

GTOP-500Y

GTOP-1000Y

Volume
150L 268L 310L
500L
1000L
External Size(L*W*H)
525*540*1580

mm

580*630*1755mm 580*630*1895mm 705*825*1971mm 1230*708*1865mm
Inner Size(L*W*H)
424*430*962mm 480*480*1040mm 480*480*1290mm 580*600*1310mm 1230*600*1270mm
Temp range
0~50℃ 0~50℃ 0~50℃ 0~50℃ 0~50℃
Light degree
0~8000LUX 0~8000LUX 0~8000LUX 0~8000LUX 0~5500LUX

GTOP Series INTELLIGENT ILLUMINATION INCUBATOR GTOP SERIES
