Top Lab Equip
Features:

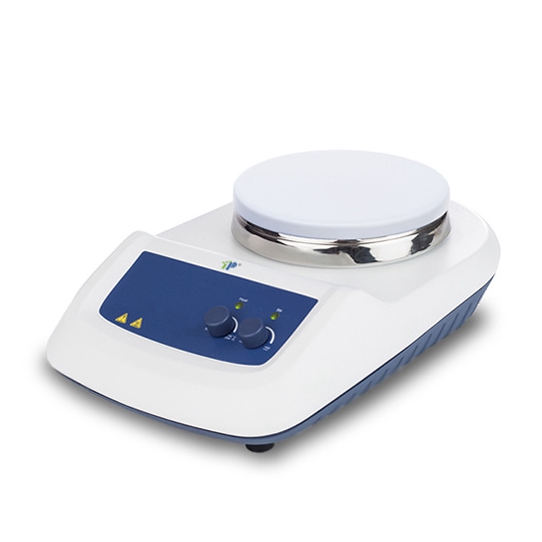

Discover the efficiency and precision of TOP INSTRUMENT Reliable Performance Regular Magnetic Hotplate Stirrer – a versatile laboratory tool designed to elevate your experiments and processes.
Empowered by a robust 530W high power brushless DC motor, the P-H-S guarantees reliable performance, longevity, and efficient stirring under diverse conditions. Maximum Speed Setting Range (Up to 1500rpm). Maximum Heating Temperature (340°C). Ceramic Workplate for Efficient Heat Transfer. Prioritize safety with built-in overheating protection. The unit provides a “hot” safety indication if the temperature exceeds 50°C, allowing users to take prompt action.
Customize your setup with various optional accessories, tailoring the stirrer to meet the specific requirements of your experiments or processes. From different stir bars to support clamps, adapt the stirrer to suit your unique needs.
Experience the convenience of a high-performance brushless DC motor, safety features, and customizable options, making it the go-to choice for various applications.
Specification:
| Workplate dimension | φ135mm (5 inch) |
| Workplate material | Stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 530W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring volume [H2O] | 20L |
| Max. magnetic bar [length] | 80mm |
| Speed range | 100-1500rpm
resolution±1rpm |
| Speed display | Dial |
| Temperature display | Dial |
| Heating temperature range | Room Temp.-340°C |
| Temperature control accuracy | – |
| Overheating protection | 350℃ |
| Temperature display resolution | ±0.5°C |
| External temperature sensor | – |
| “Hot” satety indication | – |
| Timer function | – |
| Data interface | – |
| Protection class | IP42 |
| Dimension [W*D*H] | 160*280*85mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40C, 80%RH |
