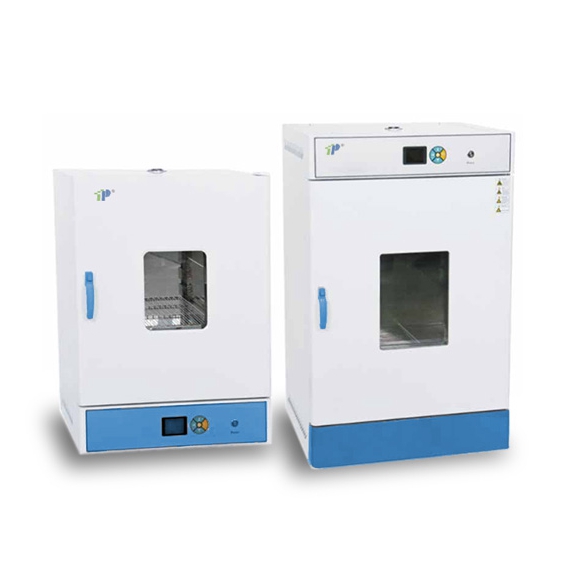

Hot Air Sterilizing Drying Oven

Hot Air Sterilizing Drying Oven uses high temperature and dry heat to oxidize microorganisms, change proteins, and cause poisoning due to dielectric concentration. Among them, the protoplasm of cells is mainly destroyed by oxidation, and microorganisms are killed, so all microorganisms are killed within a certain heating time.

Model: TX Series

Type:Vertical

Volume (L):20L, 45L, 72L, 125L, 210L

Temperature (°C):RT+10-300℃

Material:Cold plate shell and stainless steel interior

Display:LED display

  • Product Details

Features:

  • The shell of the product is processed by high-quality cold plate, and the surface is treated by spraying process.
  • The studio chooses 304 mirror stainless steel for processing and manufacturing.
  • The intelligent liquid crystal temperature control instrument has the functions of timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning, automatic fan speed regulation, door control and other functions (opening the door and automatically turning off the heating can effectively prevent the machine from overheating).
  • The thickened double-layer tempered glass observation window is convenient for observing the changes of the items in the box.
  • It adopts a new type of synthetic silica gel sealing strip, which has a beautiful appearance, can operate at high temperature for a long time, and has a longer service life.
  • Additional functions such as over-temperature protector, timer, program control instrument, printer or 485 interface are optional.
  • The equipment is equipped with a fan speed regulating switch, and the user can adjust the fan speed or automatic fan speed according to the needs.
  • Precise: High-precision microcomputer liquid crystal display temperature controller, accurate and reliable temperature control.
  • Rapid: heating up quickly, forced convection, dry and hot air directly passing through the heated object, drying and disinfection time is significantly shortened.
  • Safety: It will be automatically interrupted when the temperature exceeds the limit to ensure the safety of personnel and instruments.
  • Convenience: You can adjust the three speeds of the fan through the instrument settings, timing control, and the partition can be moved to facilitate cleaning in the box.

Specification:

Model TX-20BE TX-45BE TX-72BE TX-125BE TX-210BE
Capacity 20L 45L 72L 125L 210L
Power supply 220V 50HZ
Temperature control range RT+10-300℃
Temperature resolution 0.1℃
Temperature fluctuation ±1°C
Timing range 0~9999min
Power 600W 1000W 1500W 2000W 3000W
Studio Size (D*W*H) mm 260*280*280 350*360*350 400*400*450 450*500*550 500*600*700
Dimensions (D*W*H) mm 450*420*590 550*495*700 590*535*800 650*635*1040 705*735*1190
Package size (D*W*H) mm 510*490*690 600*550*790 650*600*880 720*700*1130 790*750*1280
Net weight/gross weight KG 24/27 38/46 47/55 71/81 85/97
