Features:
- Adopt LED digital highlight display microcomputer temperature controller with temperature control protection and timing function, the temperature control is accurate and reliable.
- The box body is made of mirror stainless steel or drawn by ammonia arc welding, and the box body is made of high-quality steel plate material, which is beautiful and novel in appearance.
- The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct. The temperature of the working room is uniform.
- Imported fan and imported thyristor are used, which has a long service life and can avoid frequent replacement.
- Independent temperature limit alarm system, automatically interrupts when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (Optional)
- It can be equipped with a printer or 485 interface, which can be used to connect to a printer or computer for real-time recording and temperature parameter changes. (Optional)
- The “D” series is an intelligent ten-segment programmable liquid crystal controller.
Specification:

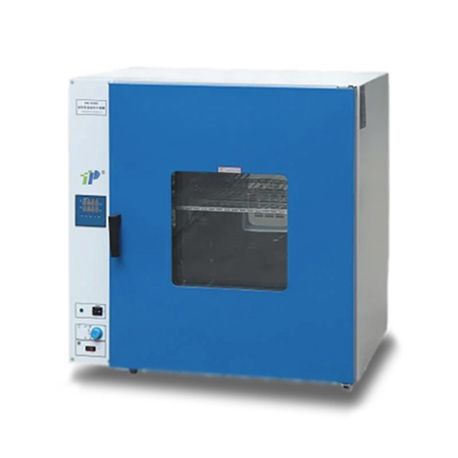

Model | Desktop Electric Heating Constant Temperature Blast Drying Oven THG-9005 Series | ||||
Voltage | 9035A
9035AD |
9055A
9055AD |
9075A
9075AD |
9145A
9145AD |
9245A
9245AD |
Temperature control range | Rt + 10℃ ~ 300℃ | ||||
Temperature resoution | 0.1℃ | ||||
Constant temperature fluctuation | ±1℃ | ||||
Inout power | 970W | 1220W | 1670W | 2170W | 2870W |
Working temperature | 5℃~ 40℃ | ||||
Liner size (mm) | 340*325*325 | 420*400*345 | 450*400*450 | 550*450*550 | 600*550*750 |
Dimensions (mm) | 625*510*490 | 720*580*530 | 740*580*630 | 830*650*730 | 800*770*930 |
Carrying bracket(standard) | 2 pieces | ||||
Timing range | 1-9999 minutes |
