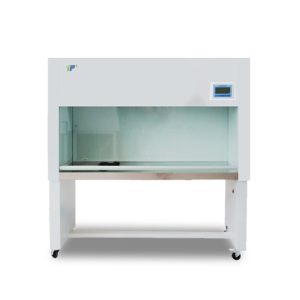

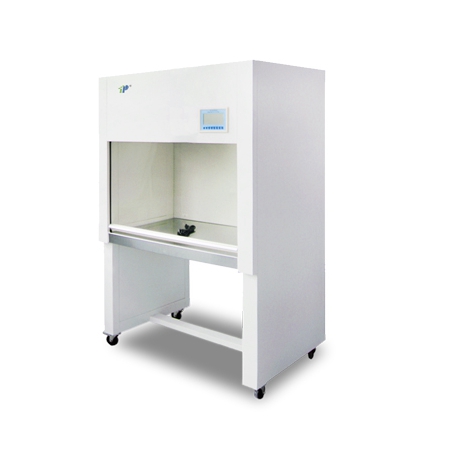

Horizontal Laminar Flow Cabinet TS-CJ Series

Horizontal laminar flow cabinet provides a sterile work zone through a purified air that travels in a horizontal, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.

TS-CJ Series Laminar Flow Cabinet is a new unidirectional air flow clean bench designed and made with international advanced technology, adopting fan system with air volume adjustable and matched with movable door free to locate. Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.

Laminar Flow Cabinet Features:

• Arbitrary positioning sliding door system is adopted.
• The shell adopts cold plate electrostatic spraying, and the working surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
• Safety interlock of lighting and sterilization system.
• Digital display LCD control interface, adjustable wind speed in three levels of fast, medium and slow, and UV lamp timing, more humanized design.
• It is equipped with a HEPA high-efficiency air filter and a primary filter for preliminary filtration, which can effectively prolong the service life of the high-efficiency filter.
• Comply with the safety requirements of various medical equipment.

Laminar Flow Cabinet Specification:

Model	TS-CJ-1B	TS-CJ-1C
Cleaning level	Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria	≤0.5per utensil.hour (90mm utensil)
The average wind speed	0.25~0.45m/s
Noise	≤62dB (A)
Half ventilation peak value	≤5μm (XYZ direction)
Illumination	≥300LX
Power supply	AC, 220V/50Hz
Maximum power	490W	640W
Weight	90kg	140kg
Dimension of working area (W1*D1*H1)	880*510*580mm	1370*510*580mm
Overall dimension (W*D*H)	1040*690*1600mm	1530*690*1600mm
Suited number	single person-single side	double person-single side
Efficient filter specifications and quantities	850*565*50*①	1350*565*50*①
Specification and number of fluorescent lamp or UV lamp of ultraviolet lights	12W*①/20W*①	20W*①/36W*①
