Features:
- The shell of the product is processed by high-quality cold plate, and the surface is treated by spraying process.
- The studio can choose stainless steel and galvanized sheet for processing and manufacturing, which is beautiful and anti-corrosion.
- A is a galvanized steel liner, AB is a stainless steel liner, and BE is a 304 stainless steel liner.
- Industrial blast drying oven is characterized by safety and practicality, with independent over-temperature protection function, timing alarm, over-temperature alarm, current indication and other multiple safety protections, with a series of practical functions such as over-temperature power failure, over-power protection, and real-time monitoring of current.

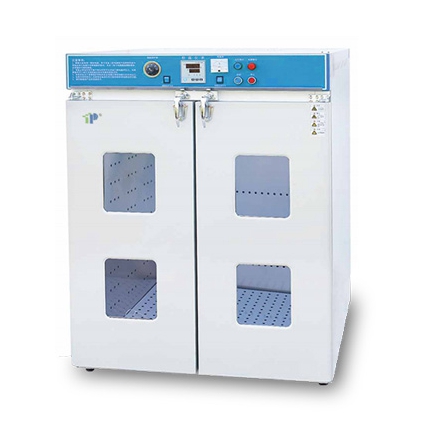

- TGF series is a vertical structure, with the characteristics of convenient operation and simple use, heating on three sides, high-power fan for air supply, and three air ducts for circulation to ensure a more uniform internal temperature.
- There are moisture discharge holes on the top of the product, which greatly improves the drying speed.
- Constant temperature mode: fan forced circulation; II is a double door structure.
- It can be equipped with LCD instrument, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.
Specification:
| Model | TGF-4A-II | TGF-5A-II | TGF-6A-II | ||||
| TGF-4AB-II | TGF-5AB-II | TGF-6AB-II | |||||
| TGF-4BE-II | TGF-5BE-II | TGF-6BE-II | |||||
| Capacity | 640L | 1200L | 3100L | ||||
| Power supply | 380V 50HZ | ||||||
| Temperature control range | RT+10-300℃ | ||||||
| Temperature resolution | 0.1℃ | ||||||
| Temperature fluctuation | ± 1℃ | ||||||
| Power | 600W | 9000W | 12000W | ||||
| Studio Size (D*W*H) mm | 800*800*1000 | 1000*1000*1200 | 1200*1600*1600 | ||||
| Dimensions (D*W*H) mm | 960*1000*1460 | 1200*1235*1610 | 1400*2050*2270 | ||||
| Package size (D*W*H) mm | 1120*1140*1545 | 1300*1330*1750 | 1500*2150*2400 | ||||
| Net weight/gross weight KG | 205/230 | 270/300 | 355/380 | ||||
