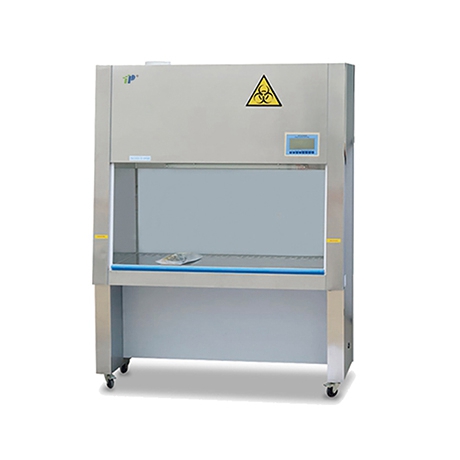

T-IIA2 series Biological Safety Cabinet is durable, reliable, and easy to maintain, constructed from high-quality materials and built to withstand the rigors of laboratory use. Its smooth surfaces facilitate effortless cleaning and disinfection, ensuring optimal hygiene and preventing the buildup of contaminants.
Features:
- Air curtain isolation design to prevent internal and external cross-contamination, 100% air flow outside, negative pressure vertical laminar flow, need to install pipes.
- The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
- The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator.
- There is a special filter at the exhaust area to control emission pollution.
- The working environment ensures no pollution and leakage. It is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent the erosion of corrosive agents and disinfectants.
- It adopts LED liquid crystal panel control, built-in UV lamp protection device, the UV lamp can only run when the front window and fluorescent lamp are closed, and has UV timing function.
- 10° tilt angle, in line with the human body design concept.
Specification:
| Model | T-1000IIA2 | T-1300IIA2 | T-1600IIA2 |
| Parameter | |||
| Picture |  |
|
|
| Airflow system | 30% Air Exhaust ，70% Air Recirculation | ||
| Cleanliness grade | HEPA: ISO 5 (Class100) | ||
| Number of colonies | ≤0.5pcs/dish·hour (Φ90mm culture plate) | ||
| Wind speed | Average suction wind speed: ≥0.55±0.025m/s | ||
| Average descending wind speed: ≥0.3±0.025m/s | |||
| Filtration Level / Filtration Efficiency | HEPA of borosilicate glass fiber material: ≥99.995%, @0.3μm | ||
| Optional ULPA: ≥99.9995% | |||
| Noise | ≤65dB(A) | ||
| Illumination | ≥800Lux | ||
| Vibration half peak | ≤5μm | ||
| Power supply | AC single phase 220V/50Hz | ||
| Maximum power consumption | 500W | 600W | 700W |
| Weight | 210KG | 250KG | 270KG |
| Internal Size (mm) W*D*H | 1040*650*620 | 1340*650*620 | 1640*650*620 |
| External Size (mm) W*D*H | 1200*800*2100 | 1500*800*2100 | 1800*800*2100 |
| High efficiency filter specification and quantity | 980*490*50*1 | 1280*490*50*1 | 1580*490*50*1 |
| 520*380*70*1 | 820*380*70*1 | 1120*380*70*1 | |
| Specification and quantity of fluorescent lamp/UV lamp | 20W*2/20W*1 | 30W*2/30W*1 | 30W*2/30W*1 |
