Dry Block Thermostat is designed for maintaining constant temperature of samples in tubes inserted in the aluminium block sockets.
PB-10 Dry Block Thermostat is a constant temperature metal bath device controlled by a microcomputer. It has high temperature control accuracy and good parallelism in sample preparation. It can replace the traditional water bath device and can be widely used in the cultivation, preservation and reaction of various samples. The application industry covers medicine and chemical industry, food safety, quality inspection, environment, etc.
Features:
- Real-time temperature display, time decrement display.
- The instrument has fast heating speed, uniform heating, accurate temperature control and high stability.
- Automatic fault detection and buzzer alarm function.
- Temperature offset calibration function.
- A variety of modules can be replaced for easy cleaning and disinfection.
- It has a programmable function to realize multi-point temperature control, up to 5 temperature points and constant temperature time setting and continuous operation.
Specification:

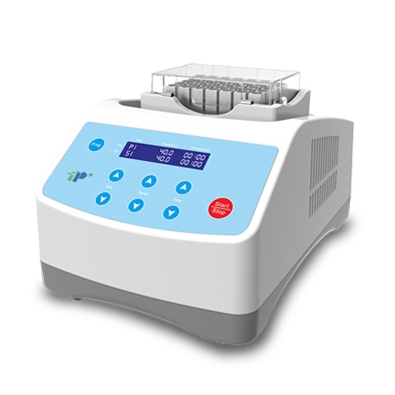

| Model | PB-10 | PB-20 |
| Picture |  |
|
| Temperature control range | Room temperature +5°C-100°C | -10℃-100℃ |
| Temperature stability | ≤±0.5℃ | ≤±0.5℃ |
| Temperature uniformity | ≤±0.5℃ | ≤±0.5℃ |
| Display accuracy | 0.1°C | 0.1°C |
| Time setting | 1min -99h59min | 1min -99h59min |
| Heating time (25°C to 100°C) | ≤12min | ≤12min |
| Cooling time (from 20°C to -10°C) | / | ≤15min (from 20℃ to -5℃)@environment temperature 25℃ ≤20min (from 20℃ to -10℃)@environment temperature 25℃ |
| Input power | AC220V/AC110V, 50/60Hz, 150W | AC220V/AC110V, 50/60Hz, 150W |
| Dimensions (mm) | 300*220*170 | 300*220*170 |
| Net weight | 3.3kg | 4.5kg |
