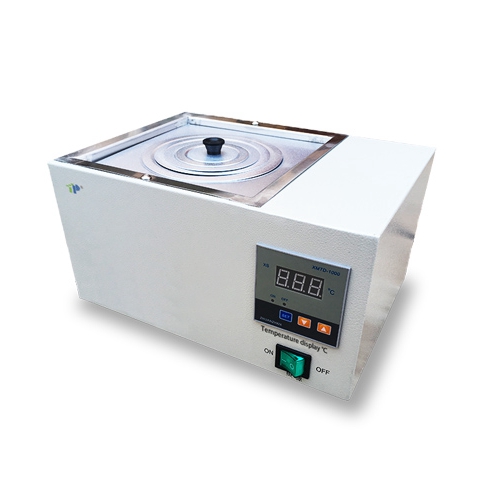

Digital Thermostatic Water Bath

Model:PH-1 / PH-2 / PH-4 / PH-6 / PH-8

Number of holes :1 hole、2 holes、4 holes、6 holes、8 holes

Temp. range :RT+5~100℃

Temp. fluctuation :±0.5℃

Working volume : 3L, 5.9L, 11L, 17L, 23L

Over temperature alarm :Yes

Material :Cold rolled sheet spray coating ( Shell ) ; Made by manual welding of 202 ( Inner liner )

  • Product Details
  • Download

Advantages:

The inner liner is constructed from high-quality stainless steel plates, and the maximum aperture of the cover plate measures 12.5 cm, featuring four circles per hole and a single cover. The shell is coated with cold plate spray, enhancing the overall machine’s anti-corrosion capabilities. Temperature control utilizes a digital display, which increases the accuracy of temperature regulation and provides an intuitive and clear temperature readout.

Features:

  • The inner tank is welded with high-quality stainless steel plates.
  • The maximum hole diameter of the cover plate is 12.5cm. Each hole has four circles and one cover.
  • The outer shell is made of cold plate spray plastic, which improves the anti-corrosion ability of the whole machine.
  • The temperature control adopts digital display control, which improves the constant temperature accuracy and makes the temperature display intuitive and clear.

Specification:

Model Number of holes Water tank volume Heating power
PH-1 1 hole 160*160*120mm 300W
PH-2 2 holes 310*160*120mm 600W
PH-4 4 holes (double row) 305*305*120mm 800W
PH-6 6 holes (double row) 465*310*120mm 1200W
PH-8 8 holes (double row) 640*310*120mm 1500W
PH-4 4 holes (single row) 610*160*120mm 1000W
PH-6 6 holes (single row) 910*160*120mm 1200W
PH-8 8 holes (single row) 1200*160*120mm 1800W

Constant temperature range: room temperature RT+5~100℃

Temperature fluctuation: ±0.5℃

PH Series CONSTANT TEMPERATURE WATER BATH
