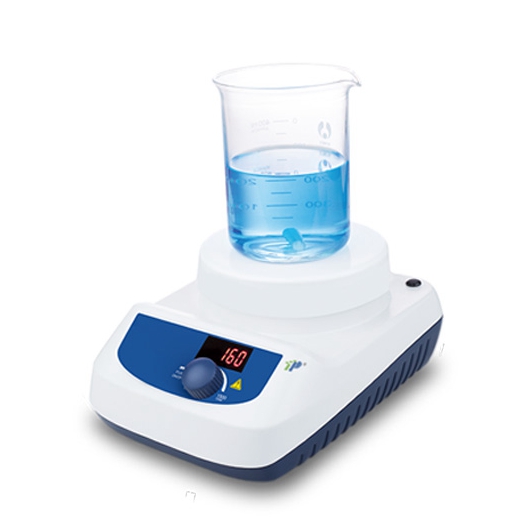

LED Digital Magnetic Stirrer

It features an LED display that shows real-time temperature and stirring speed. It is commonly used for various applications such as sample preparation, chemical synthesis, and quality control. 100-1500rpm is easy to operate and provides reliable and efficient mixing of solutions.

Model:PS-PA / PS-PB

Work plate size:φ135mm (5 inch)

Work plate material:Nylon+GF

Max. stirring volume:3L

Speed range:200-1500rpm, 0-1500rpm

Display:LED

Data interface:No

Support clamp & temperature sensor: Optional

Send Inquiry Seed E-mail

Product Details
Accessories

Specification:

Specifications	PS-PA	PS-PB
Workplate dimension [W*D]	φ135mm (5 inch)	φ135mm (5 inch)
Workplate material	Nylon+GF	Nylon+GF
Motor type	Brushless DC motor	Brushless DC motor
Motor rating input	5W	5W
Motor rating output	3W	3W
Power	15W	10W
Voltage	100-120/200-240V, 50/60Hz	100-120/200-240V, 50/60Hz
Stirring positions	1	1
Max. stirring volume [H2O]	3L	3L
Max. magnetic bar [length]	50mm	50mm
Speed range	200-1500rpm	0-1500rpm
Speed display	LED	Dial
Protection class	IP42	IP42
Dimension [WDH]	15026080mm	15026080mm
Weight	1.8kg	1.8kg
Permissible ambient temperature and humidity	5-40C, 80%RH	5-40C, 80%RH


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)
