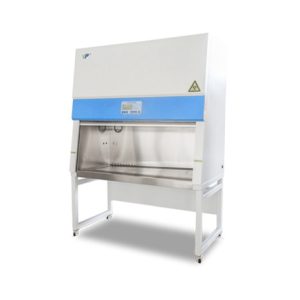

Class II A2 Biological Safety Cabinet

Biological Safety Cabinet Features:

• Air curtain isolation design prevents internal and external cross-contamination, 30% of the air flow is discharged outside and 70% of the internal circulation, negative pressure vertical laminar flow, no need to install pipes.
• The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
• The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
• A special filter is installed at the exhaust air to control emission pollution.
• It adopts LED LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed.
• With DOP detection port, built-in differential pressure gauge.
• 10° tilt angle, in line with the human body design concept.

Biological Safety Cabinet Specification:

Model	BSC-1000IIA2	BSC-1300IIA2	BSC-1600IIA2
Parameter
Airflow system	70% air recirculation, 30% air exhaust
Cleanliness grade	HEPA: ISO 5 (Class100)
Number of colonies	≤0.5pcs/dish·hour (Φ90mm culture plate)
Wind speed	Average suction wind speed: ≥0.55±0.025m/s
	Average descending wind speed: ≥0.3±0.025m/s
Filtration Level / Filtration Efficiency	HEPA of borosilicate glass fiber material: ≥99.995%, @0.3μm
	Optional ULPA: ≥99.9995%
Noise	≤65dB(A)
Illumination	≥800Lux
Vibration half peak	≤5μm
Power supply	AC single phase 220V/50Hz
Maximum power consumption	500W	600W	700W
Weight	210KG	250KG	270KG
Internal Size (mm) W*D*H	1040*650*620	1340*650*620	1640*650*620
External Size (mm) W*D*H	1200*800*2100	1500*800*2100	1800*800*2100
High efficiency filter specification and quantity	980*490*50*1	1280*490*50*1	1580*490*50*1
	520*380*70*1	820*380*70*1	1120*380*70*1
Specification and quantity of fluorescent lamp/UV lamp	20W*2/20W*1	30W*2/30W*1	30W*2/30W*1
