Features:

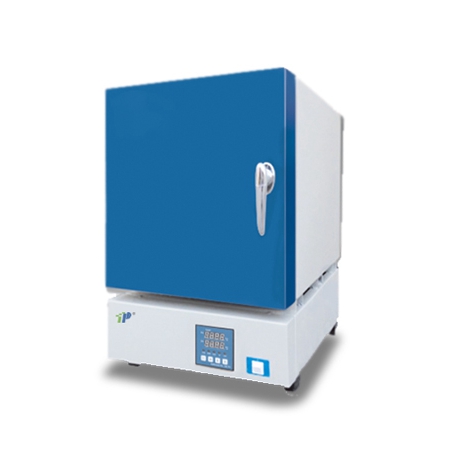

- The working chamber of TX2 series digital display box-type resistance furnace is made of refractory material.
- The heating element is placed in it, and the furnace and the furnace shell are only built with insulation materials.
- The furnace shell is welded with angle steel and high-quality steel plate.
- 380V has been equipped with a protective cover, and fire bricks have been equipped for temperatures above 1200 degrees.
Specification:
| Model | TX2-2.5-10N | TX2-4-10N | TX2-8-10N | TX2-12-10N | TX2-2.5-12N | TX2-5-12N | TX2-10-12N | TX2-12-12N |
| Rated power | 2.5KW | 4KW | 8KW | 12KW | 2.5KW | 5KW | 10KW | 12KW |
| Voltage | 220V | 380V | 220V | 380V | ||||
| Heating element | Resistance wire | |||||||
| Temperature measuring element | Type K thermocouple | |||||||
| Rated temperature | 1000℃ | 1200℃ | ||||||
| Inner tank size(mm)(W*D*H) | 120*200*
80 |
200*300*
120 |
250*400*
160 |
300*500*
200 |
120*200*80 | 200*300*120 | 250*400*160 | 300*500*200 |
