Features:

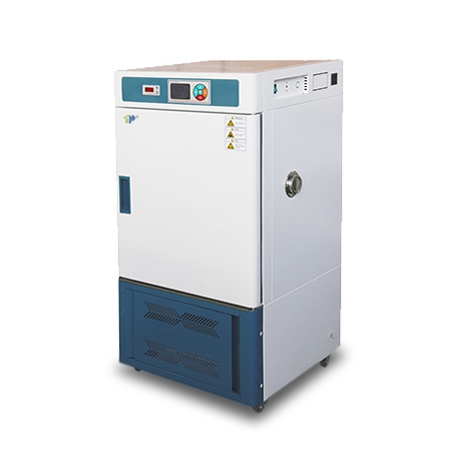

Economy Low Temperature BOD Refrigerated Incubator – your lab’s essential companion for precision and reliability. Engineered for seamless operation and optimal results, it features:
- Uniform Temperature
Innovative internal wind circulation ensures consistent heat distribution.
- Clear Observation
Double door structure with high-quality glass for easy sample monitoring.
- Effortless Control
Color LCD display and 30-stage program temperature control.
- Seamless Operation
Double evaporators and automatic defrosting for uninterrupted use.
- Enhanced Safety
Standard temperature limiters and double test safety protection.
Upgrade your lab with efficiency and peace of mind. Explore the possibilities with our Economy Low Temperature BOD Refrigerated Incubator today.
BLT model additional characteristics:
- 5.0 inch touch display 30-stage program control, round move, ladder operating.
- Sensor failure alarm, temperature curve, U-disk data storage, auto start.
- UV Lamp.
Specification:
| Model | TPX-70BV | TPX-150BV | TPX-250BV | ||
| TPX-70BLT | TPX-150BLT | TPX-250BLT | |||
| Cycle Mode | Forced convection | ||||
| Function | Temp.Range | -10-65℃ | |||
| Temp.Resolution Ratio | 0.1℃ | ||||
| Temp.Motion | High Temp: ±0.5℃ Low Temp: ±1℃ | ||||
| Temp.Uniformity | ±1℃ | ||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Insulation Layer | Polyurethane | ||||
| Heater | Stainless steel heating tube | ||||
| Power Rating | 0.8KW | 1.0KW | 1.2KW | ||
| Compressor | Air cooled hermetic compressor | ||||
| Cryogen | R134a | ||||
| Defrost Structure | Double evaporator switching defrosting | ||||
| Test Hole | 43mm | ||||
| Controlled External Power Supply | Universal socket(one)Built in waterproof socket(one) | ||||
| Temp.Control Mode | BIV:Color screen LCD program BL: 5.0 inch touch screen | ||||
| Temp.Setting Mode | Touch button setting or Touch screen type | ||||
| Temp.Display Mode | Measuring temperature: LCD upper screen; setting temperature: LCD lower row | ||||
| Timer | 0-99.9h*30Segment | ||||
| Operation Function | Program operation | ||||
| Sensor | PT100 | ||||
| Additional Function | BIV model: LED light, Deviation correction, Menu key lock, Power failure parameter memory | ||||
| BL model additional character: loop self diagnosis | |||||
| Safety Device | Over temperature alarm, digital temperature limiter | ||||
| Specification | Inner Chamber Size(W*L*H)(mm) | 420*350*500 | 500*500*600 | 600*500*840 | |
| Exterior Size(W*L*H)(mm) | 580*610*1190 | 660*760*1290 | 760*760*1530 | ||
| Packing Size(W*L*H)(mm) | 706*698*1358 | 856*778*1458 | 878*865*1698 | ||
| Volume | 70L | 150L | 250L | ||
| Load Per Rack | 15kg | ||||
| Shelf Number | 9 | 12 | 18 | ||
| Shelf Space | 35mm | ||||
| Power Supply Current Rating | AC220V/2.3S | AC220V/3.6A | AC220V/5.5A | ||
| NW/GW(kg) | 69/92 | 86/114 | 100/139 | ||
| Accessory | Shelf | 2 | |||
| Optional Accessories | Spare shelf, RS485 interface, printer remote control, U-disk storage | ||||
