Vertical laminar flow cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet. It creates a vertical downward flow of sterile air in the work area for any experiment that requires aseptic processing. With our attention to detail and dedication to automating clean operations, the laminar flow cabinet is suitable for use in a variety of laboratories and industries, providing superior cleanliness in life sciences, medical, electronics manufacturing, and other areas.
Features:
- The whole equipment is welded with cold-rolled plate, and the surface is electrostatic sprayed.
- The air supply mode of the equipment is divided into vertical air supply and horizontal air supply, quasi-closed glass damper, easy to operate.
- Small and compact, it can be placed on a general workbench at will, and it is convenient for small studios to use.
- The fan system is controlled by the remote control switch, fast and slow, to ensure that the wind speed in the work area is always in an ideal state.
Specification:

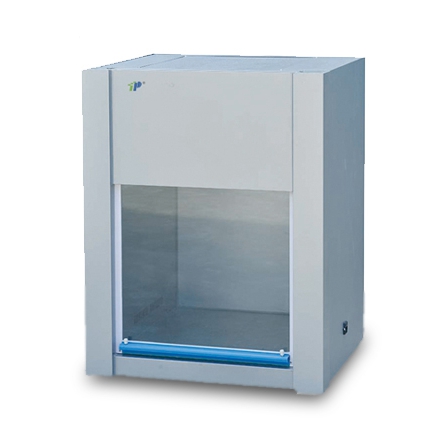

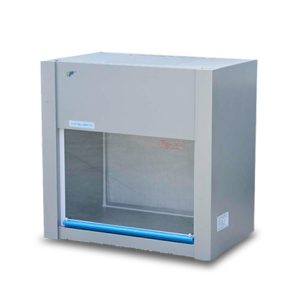

| Model | T-650 | T-850 |
| Picture |  |
 |
| Cleaning level | Grade 100≥0.5μM (209E U.S. Federal) | |
| Number of bacteria | ≤0.5per utensil.hour (90mm utensil) | |
| The average wind speed | 0.25~0.45m/s | |
| Noise | ≤62dB (A) | |
| Half ventilation peak value | ≤5μm (XYZ direction) | |
| Illumination | ≥300LX | |
| Power supply | AC, 220V/50Hz | |
| Dimension of working area (W1*D1*H1) | 490*490*490mm | 690*490*490mm |
| Overall dimension (W*D*H) | 650*530*850mm | 850*530*850mm |
| Efficient filter specifications and quantities | 475*410*38*① | 675*410*38*① |
| Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 5W*①/10W*① | 12W*①/20W*① |
