Turbidity Meter used for measuring the turbidity of a liquid sample.It is designed for use in a wide range of applications such as water quality testing, wastewater treatment, and food and beverage production.

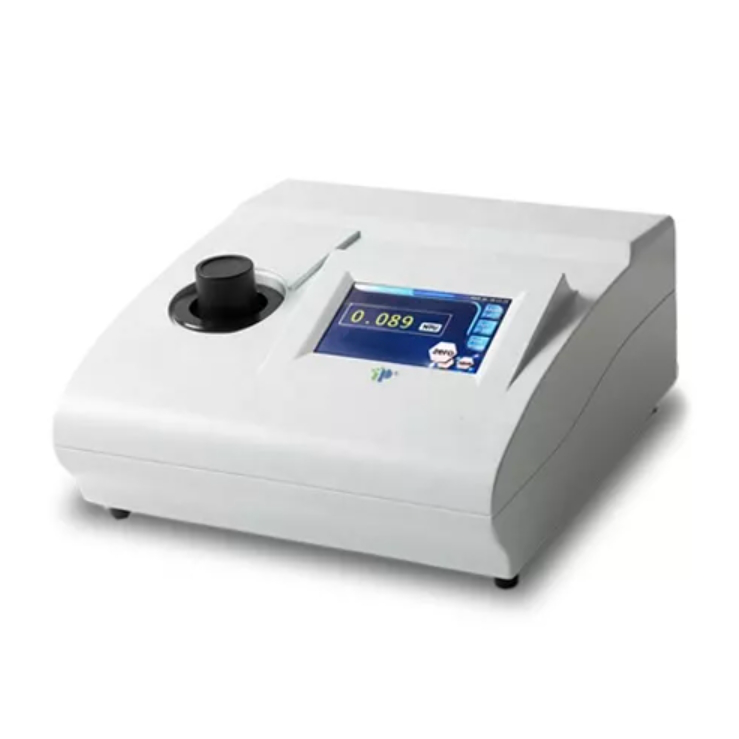

PGZ-1000 Benchtop Turbidity Meter has a compact and durable design, making it easy to use and transport. The instrument has a range of turbidity settings that can be adjusted to suit the specific needs of the experiment or procedure.
Features:
- 7 inch LCD touch screen panel.
- Tungsten lamp light source meet USEPA-
- 180.1 requirement.
- 3 photodiodes to ensure high accuracy.
- 1-8 points calibration with Formazin standards or zero water.
- Auto range switch from 0-2000 NTUs.
- Data storage of 1000 sets (GLP-compliant).
- RS232 and USB interfaces for output.
- Reset function to resume all settings to factory default settings.
Specification:
| Light source | Tungsten halogen lamp 6V,10W |
| Receiving element | Silicon photocell |
| Measurement range NTU | 0.00-50.0 50.1-200 200.1-1000 (automatic range switchover) |
| Readings display | LCD Touch Screen |
| Minimum Reading | 0.001 |
| Allowable error of indication | ≤±6% |
| Zero Drift | ≤±0.3%FS |
| Stability of indication | ≤±1%FS |
| Repeatability | ≤0.5% |
| Sample bottle | Φ25mm*95 mm |
| Data storage | 1000 sets |
| Calibration | 5 points |
| Sample volume | 30–40 ml |
| Interface | USB/RS232 |
| Overall dimensions/Weight | 430mm*430mm*300mm/9 Kg |
