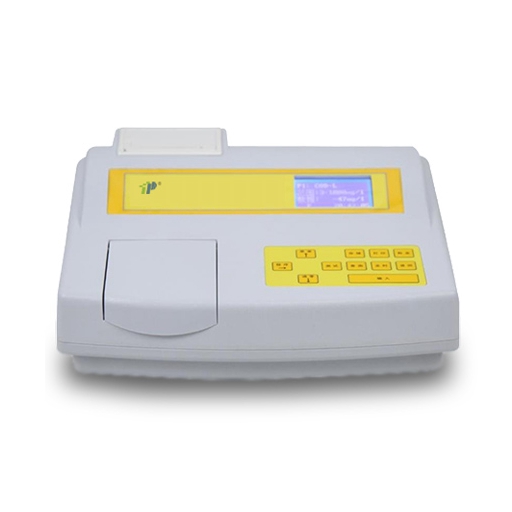

Benchtop Multi-Parameter Water Quality Meter

P9024 Multi-Parameter Water Quality Meter adopts DPD photometric method, and adopts photoelectric colorimetric detection principle to replace traditional visual colorimetric method. Eliminates human error and has high measurement resolution. It can be widely used in inspection departments of waterworks, industrial and mining enterprises, hospitals, domestic or industrial water, etc., in order to control the ion concentration in the water to meet the specified water quality standards.

Model:P9024

Type:Desktop

Testing method:Platinum cobalt standard colorimetric method.

Measuring range:

Ozone:0~2mg/L

Chlorine:0~5mg/L

Total chlorine:0~5mg/L

Carbon dioxide:0~5mg/L

Min. readout:0.01mg/L

Error:±5%FS

Repeatability:≤3%

  • Product Details
  • Download

Features:

  • Large-scale integrated circuits are used to ensure that the instrument can work stably for a long time. The memory standard curve can be modified by the user, and it has the function of saving when power off.
  • Reliable positioning structure and independent dual optical path system can effectively avoid the interference caused by stray light, and can accurately measure the ion concentration value in the sample.
  • It can automatically complete the selection of light source, detector and working curve. High degree of automation and simple operation.
  • Equipped with a high-intensity and long-life cold light source, there is no need to worry about replacement. Optional built-in printer is available.
  • Independent research and development of rapid assay reagents that meet national standards can provide long-term stable supply, effectively reducing user workload and sample testing costs.

Specification:

Test methods DPD photoelectric colorimetric determination
Determination parameters Ozone Chlorine Total chlorine Carbon dioxide
Measuring range 0~2mg/L 0~5mg/L 0~5mg/L 0~5mg/L
Minimum indication 0.01mg/L
Linearity error ±5%F.S
Repeatability 3%
Power supply DC9V/ 0.1A
Features Desktop microcomputer configuration, equipped with DPD rapid determination reagent

P9024 MULTI-PARAMETER CONTROLLER
