Benchtop Low-speed Refrigerated Centrifuge - Top Lab Equip

Refrigerated Centrifuges/Benchtop Centrifuges/

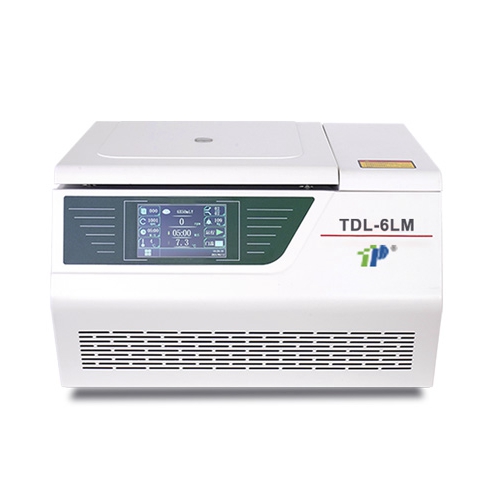

Benchtop Low-speed Refrigerated Centrifuge

This Benchtop Low-speed Refrigerated Centrifuge adopts brushless frequency conversion motor, microcomputer control; with a speed of 6000 rpm and temperature ranging from -20 ℃ ~ 40 ℃. LCD, digital dual-screen display; all-steel body, stainless steel centrifuge chamber; electronic safety door lock, unbalance protection; fluorine-free refrigerant, heating and cooling dual-loop control; RCF can be set and displayed directly, without RPM/RCF conversion; with precise speed control and durability.

Model: TDL-6LM

Type:Benchtop

Maximum speed:6000 r/min

Max. RCF:5120*g

Maximum capacity:4*250ml (4000rpm)

Temperature control:-20℃~40℃

Display:LCD

Operation:Touch screen

  • Product Details
  • Rotor
  • Rotor Display
  • Download

Features:

  • LCD touch screen, the interface is simple and clear, and all parameters are clear at a glance.
  • Humanized design, convenient and fast operation, direct digital input for parameter setting, accurate to single digit.
  • Intelligent status prompt, real-time display of instrument status.
  • Using a three-axis gyroscope to dynamically monitor the balance state throughout the process.
  • Large storage space, can store up to 1000 program groups and 1000 usage records.
  • 5 sets of multi-speed gradient centrifugation programs can be edited and saved.
  • Time display, year, month, day, hour, minute, second, convenient for tracking and recording.
  • Hours. Minutes and Minutes. Seconds are available in two timing modes, and two modes of timing and countdown are optional.
  • 40 levels of speed up and down gears, free parking can be set to meet various centrifugal recovery requirements.
  • Speed, centrifugal force, and temperature curves are displayed on the same screen during operation, and the relationship between changes can be clearly analyzed.
  • PID dynamic temperature control.
  • Password lock function, the user can set a password to lock the host or parameters with a password to prevent misuse.
  • Automatic conversion of speed and centrifugal force, displayed on the same screen, no conversion required.
  • It has 22 kinds of protection functions such as door cover, overspeed, overtemperature, overcurrent, overvoltage, overheating, etc., and the sound and text prompt and display the solution at the same time, which is more stable and reliable.
  • Comes with electronic manual, never lost, easy to use.
  • Standard ECO energy-saving module.

Specification:

Maximum speed 6000 r/min
Max. RCF 5120*g
Maximum capacity 4*250ml (4000rpm)
Speed accuracy ±10 r/min
Temperature control accuracy ±1℃
Temperature control range -20℃~40℃
Timing range 1min~99H59 min
Noise ≤60db (A)
Power supply AC 220V 50HZ 15A
Power 1.2kW
Dimensions 640*560*390 (L*W*H) mm
Weight 80 kg



Rotor Capacity Max. Speed Max. RCF
No. 1 Horizontal rotor 4*100ml 5000rpm 4650*g
4*50ml
No. 2 Horizontal rotor 32*15ml 4000rpm 2980*g
8*50ml
8*100ml
No. 3 Horizontal rotor 4*250ml 4000rpm 2980*g
Optional Adapter 8*50ml
4*100ml
36*10ml
40*7ml
20*15ml
48*2~7ml vacuum tube 4000rpm 3100*g
64*2~7ml vacuum tube
No. 4 Enzyme labeled horizontal rotor 2*3*96holes 4000rpm 1970*g
No. 5 Angle rotor 6*50ml 6000rpm 5120*g
NO.T.04.100H
NO.T.04.050H
NO.T.04.250H
NO.T.48.2.7H
NO.T.64.2.7H
NO.T.32.015H
NO.T.08.050H
NO.T.08.100H
NO.T.02.03.96H
NO.T.06.050A
NO.T.12.015A

TDL-6LM BENCHTOP LOW-SPEED REFRIGERATED CENTRIFUGE
