Benchtop Refrigerated Centrifuge - Top Lab Equip

Refrigerated Centrifuges/Benchtop Centrifuges/

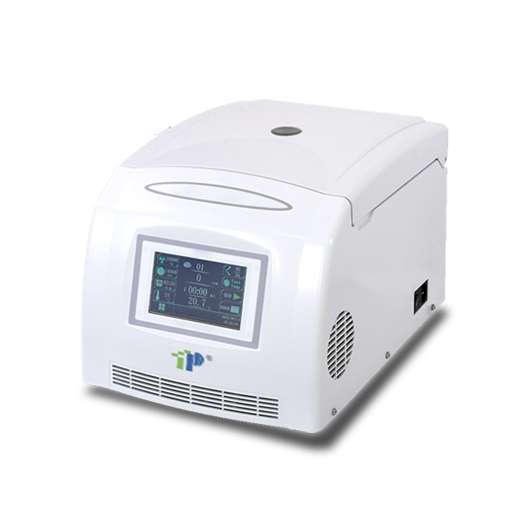

Benchtop Refrigerated Centrifuge

This Refrigerated Centrifuge has a streamlined body, small and compact, space-saving, and lightweight design, which combines outstanding convenience with exceptional ease of use to expedite daily processing.

Model:TGL-16LM

Type:Benchtop

Maximum speed:14000 r/min

Max. RCF:18800*g

Maximum capacity:12*5ml

Temperature control:-10°C~35°C

Display:LCD

Operation:Touch screen

  • Product Details
  • Optional Rotor
  • Rotor Display
  • Download

Features:

  • Streamlined body, small and compact, saving space.
  • Lightweight design, so that the refrigerated centrifuge is no longer heavy.
  • Driven by variable frequency motor, the speed is accurate and the operation is stable.
  • Microcomputer control, LCD display.
  • Power-on intelligent detection, unbalance protection.
  • Self-priming servo door lock.
  • Frequently used programs can be stored and called, and the speed up and down speed can be adjusted.
  • Inverter compressor temperature control, fluorine-free refrigerant, accurate temperature control.
  • RCF can be set and displayed directly without RPM/RCF conversion.
  • The instrument can modify the operating parameters during operation.

Specification:

Maximum speed 14000 r/min
Max. RCF 18800*g
Maximum capacity 12*5ml
Speed accuracy ±10 r/min
Temperature setting range -10°C~35°C
Temperature control accuracy ±1℃
Timing range 1~999min59s
Noise ≤58dB (A)
Power supply AC 220V 50HZ 15A
Power 800W
Dimensions 400*285*285 (L*W*H) mm
Weight 19 kg (without rotor)
Standard 24*1.5ml angle rotor (including 0.5ml and 0.2ml adapters)



Rotor Capacity Maximum Speed Maximum Max. RCF
Rotor No. 1 24*1.5ml/2.2ml 14000rpm 18800*g
Rotor No. 2 4*8*0.2ml 14000rpm 18800*g
Rotor No. 3 12*5ml 14000rpm 15880*g
No. 1
No. 2
No. 3

TGL-16LM BENCHTOP HIGH-SPEED REFRIGERATED CENTRIFUGE
