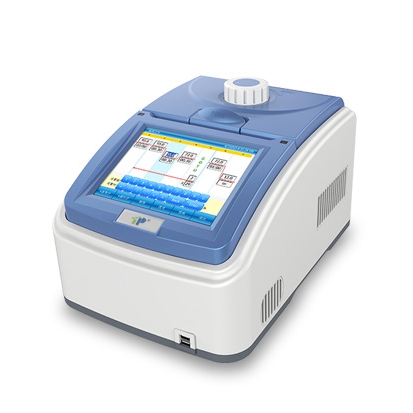

The Thermal Cycler uses customized Marlow(US) peltier. Its max. Ramping rate is 6 ℃/s and cycle times is more than 1,000,000. The product combines a variety of advanced technologies: WINCE system; color touch screen; 6 independently controlled temperature zones; PC on-line function; printing function; big storage capacity and support USB device. All above functions allow PCR’s excellent performance and meet higher experiment’s need.
Features:
- Six pieces of long service life Peltier heating units and can independently control 6 temperature zones.
- Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
- High heating and cooling rate, max. Ramping rate 6 ℃/s, can save your precious time.
- Stepless adjustable hot lid, fit tubes of different heights to avoid tube melt and evaporation.
- Windows interface, 8” ( 800*600, 16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
- Built-in 11 standard program file template, can quickly edit the required files.
- Folder management, user can build directory.
- The running program and left time can be displayed in real time, allow to edit file when program is running.
- One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
- Internal flash memory for 10000 typical PCR files in free configurable folders.
- Hot lid temperature and hot lid work mode can be set to meet different experiment’s need.
- Automatic restart after power failure. When power is restored it can continue to run unfinished program.
- GLP report records every step to provide accurate data support for experiment result analysis.
- User Login Management, three-tier permission, password protection function to ensure data security.
- Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
- Support USB and LAN to update software.
- One computer can control many sets of PCR via network connection.
- Min type Bluetooth printer as an option, easily record information.
- Support email-alert function when experiment is over.
Specification:
| Capacity | 96*0.2ml (6 independent 16 well block) |
| Temperature Range | 4-100℃ |
| MAX. Heating Rate | 6℃/s |
| MAX. Cooling Rate | 4℃/s |
| Uniformity | ≤±0.3℃ |
| Accuracy | ≤±0.2℃ |
| Display Resolution | 0.1℃ |
| Temperature Control | BlockTube |
| Ramping Rate Adjustable | 0.1-6℃/s |
| Gradient Temp. Range | 30-100℃ |
| Gradient Spread | Temperature difference of adjacent temperaturezone is 0.1-5℃.6 temperature zones in total |
| Hot Lid Temperature | 30-110℃ |
| Hot Lid Height Adjustable | Stepless Adjustable |
| Number of Programs | 10000 +(USB FLASH) |
| Max. No. of Step | 30 |
| Max. No. of Cycle | 100 |
| Time Increment/Decrement | 1 Sec – 600 Sec |
| Time Increment/Decrement | 0.1-10.0℃ |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Hold at 4℃ | Forever |
| Touchdown Function | Yes |
| Long PCR Function | Yes |
| Language | English |
| LAN to computer | Yes |
| LCD | 8 inch，800*600 pels, |
| Communication | USB2.0 , LAN |
| Dimensions | 390mm*270mm*255mm (L*W*H) |
| Weight | 9kg |
| Power Supply | 85-264VAC , 47-63Hz , 600 W |
