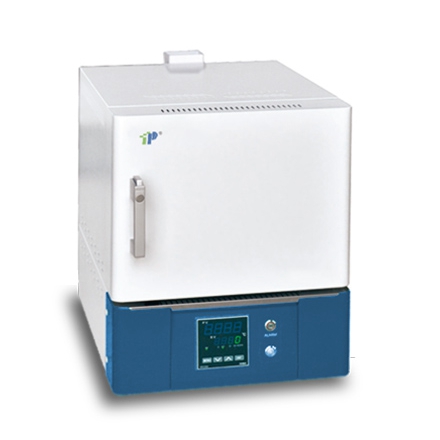

TX3/TX4 Series Muffle Furnace Features::
- Mirror stainless steel mouthlong-term use will notchange color.
- Imported double insulated ceramic linerstable performance.
- Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.
- In the double shell the air sleeve isinsulatedand the double guiding air passage.
TX4 model also has the following Features:
- Adding exhaust devices is beneficial to ashing.
- Split design, circuit detachable easy to maintenance and repair.
- P model is program temperature control type. program temperature controller can programme muitistage program.
Specification:
| Model | TX3-2.5-12 | TX3-5-12 | TX3-8-12 | TX3-10-12 | ||
| TX3-2.5-12B | TX3-5-12B | TX3-8-12B | TX3-10-12B | |||
| TX4-2-12 | TX4-7-12 | TX4-12-12 | TX4-16-12 | |||
| TX4-2-12B | TX4-7-12B | TX4-12-12B | TX4-16-12B | |||
| TX4-2-12P | TX4-7-12P | TX4-12-12P | TX4-16-12P | |||
| TX4-2-12PB | TX4-7-12PB | TX4-12-12PB | TX4-16-12PB | |||
| Heating mode | Alloy wire heating in three sides left; right; top side. | |||||
| Function | Temp. Range | 100-1200℃ | ||||
| Temp. Resolution Ratio | 1℃ | |||||
| Temp. motion | ±1℃ | |||||
| Temp. Rising time to max temp | ≤30min | |||||
| Structure | Chamber material | Ceramic fiber | ||||
| Outer shell | cold roling steel electrostatic spraying exterior; B model: stainless steel | |||||
| Insulation layer | Ceramic fiber | |||||
| Heater | Alloy heating wire | |||||
| Power rating | 1.5kW | 3.0kW | 4.5kW | 6.0kW | ||
| Exhaust hole | φ30mm (chimney size 80*60mm) | |||||
| Controller | Temp. control mode | TX3 model: domestic brand single controller; TX4 model: Imported single controller form Japan; P model: Imported 40 sections program temperature control device from Japan Fuji |
||||
| Temp. setting mode | Touch button setting | |||||
| Temp. display mode | Measuring temperature: LED upper row, setting temperature: the lower row | |||||
| Timer | 0-9999min (with timing wait function) TX4 Series no timing function |
|||||
| Operation function | Fixed temperature operation, timing function, auto stop. | |||||
| Additional function | Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory | |||||
| Sensor | TX3: Platinum-rhodium sensor; TX4: High precision K type sensor | |||||
| Safety device | Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection, thermocouple failure | |||||
| Specification | Inner Chamber size (W*L*H)(mm ) | 120*200*80 | 200*300*120 | 200*300*200 | 250*400*160 | |
| Exterior size (W*L*H) (mm) | 450*685*600 | 530*785*640 | 530*785*720 | 600*895*700 | ||
| Packing size (W*L*H) ( mm) | 580*775*730 | 660*875*770 | 660*875*850 | 730*985*830 | ||
| Volume | 2L | 7L | 12L | 16L | ||
| Current rating (50/60HZ) | AC220V/6.6A | AC220V/13.6A | AC220V/20.4A | AC380V/9.9A | ||
| NW / GW (kg) | 33/37 | 45/50 | 62/68 | 77/96 | ||
