Lab Ventilation Products

Chemical Fume Hoods are designed to limit exposure to hazardous or toxic fumes, vapors or dusts while working within the hood. This  Series Fume Hoods integrated with water, electricity, gas and ventilation. It is equipped with multifunctional socket inside. The window is designed into automatic balance type and is equipped with proper poise for taking its place easily.The bottom is equipped with stainless steel water tank with which liquid antiseptic, experiment leftover can be discharged from this tank through bathing so as to keep experiment environment safe and reliable. Thus, it is a kind of common lab equipment for discharging bad gas, cleaning and discharging in the course of experiment.

Model:T-12, T-15, T-18

Exhaust speed：within 0.3m-0.6m/s adjustable

Material (Economy type)：Steel and wood structure

Standard with one socket, optional workspace sink, faucet.

Ducted fume hood used to protect labs and users from hazardous and respirable fumes, dust, and particulates. By utilizing a ducting system, this exterior-venting exhaust hood is typically used for applications with high volumes of volatile organic compounds, and toxic chemicals, gases, or powders.

Model: TS-12, TS-15, TS-18

Exhaust speed：0.5m/sec

Shell material：1.0mm thick cold-rolled steel plate

Inner shell material：5mm anti folding special plate

Standard with one socket, optional workspace sink, faucet.

All water, electricity, and gas pipelines are installed in a concealed manner. The back panel of the cabinet is equipped with maintenance holes.

The Fume Hoods used in the laboratory, it is necessary to discharge harmful gases, and it is a common laboratory equipment that needs to be cleaned and decontaminated during the experiment. Water, electricity, gas, and ventilation are integrated, and multi-functional power sockets are built in, which is convenient for using other electrical equipment in the laboratory process.

Model:TS-FH1200, TS-FH1500, TS-FH1200

Exhaust speed：0.25-0.45 m/s, adjustable

Shell material：All steel structure

Standard with one socket, optional workspace sink, faucet.

① Well-suited for laboratories or medical settings where controlled containment of airborne particles and fumes is essential, and where space constraints necessitate a desktop configuration.

② Designed as a desktop unit, the fume hood is space-saving, making it suitable for laboratories or workspaces where floor space is limited.

③ Features a high-efficiency filter designed to capture particles with a diameter greater than or equal to 0.3 micrometers, the filtering effect is 99.995%.

Model: T-600P, T-600N

Inner Size:(W*L*H)：480*340*370mm

Exterior Size: (W*L*H)：550*460*700mm

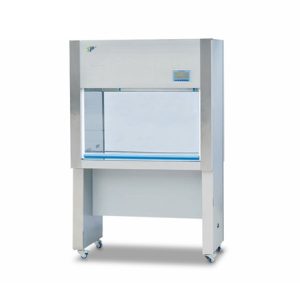

Model:T-CJ-1D, T-CJ-2D

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Number of bacteria:≤5per utensil.hour (90mm utensil)

The average wind speed:0.25~0.45m/s

Material: Steel and wood structure

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

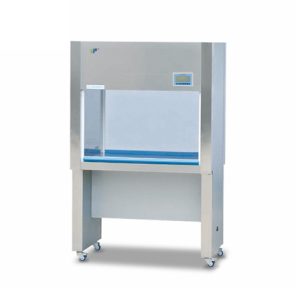

Model:T-CJ-1F, T-CJ-2F, T-CJ-3F

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Number of bacteria:≤5per utensil.hour (90mm utensil)

The average wind speed：0.25~0.45m/s

Material: Steel and wood structure

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1): 880*510*580mm

Overall dimension (W*D*H): 1040*690*1600mm

Material: Steel and wood structure

Number of users: Single People/Single Side

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1): 700*400*515mm

Overall dimension (W*D*H): 855*550*1600mm

Material: Steel and wood structure

Number of users: Single People/Single Side

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1): 1150*410*580mm

Overall dimension (W*D*H): 1310*590*1600mm

Material: Steel and wood structure

Number of users: Double Persons/Single Side

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

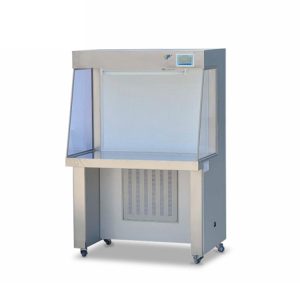

Model:T-CJ-1BU, T-CJ-1CU

Air Supply:Horizontal Air Supply

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Number of bacteria:≤0.5per utensil.hour (90mm utensil)

The average wind speed:0.25~0.45m/s

Material: Steel and wood structure

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Based on actual usage, when it is inconvenient to have sliding doors, such as venous configurations, choose this model.

PCR Workstations are specialised laminar flow enclosures designed to minimise contamination risks during polymerase chain reaction (PCR) processes. Ideal for laboratories prioritising precision, these workstations ensure a controlled, clean environment for sensitive DNA amplification. Features include HEPA-filtered airflow, ergonomic designs, and advanced UV sterilization. Suitable for research, diagnostics, and medical labs, these workstations enhance efficiency and sample integrity.

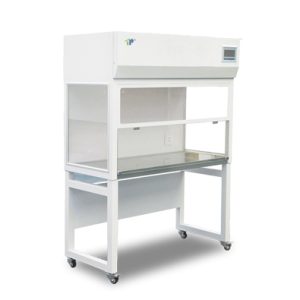

Model: T-PCR-2S

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1)：1150*510*580mm

Overall dimension (W*D*H)：1310*590*1620mm

Number of users: Double Persons/Single Side

HEPA filtration system: A positive pressure HEPA filtration system, which can form an uninterrupted ISO Class 5 air clean area in the sample preparation area.

The cavity can accommodate tube racks, racks, pipettes, microcentrifuges and thermal cyclers.

PCR Cabinet is a laboratory instrument used for providing a clean and sterile work environment for handling materials that are sensitive to contamination, such as PCR samples. It is commonly used in a wide range of applications such as molecular biology, genetics, and biotechnology research.

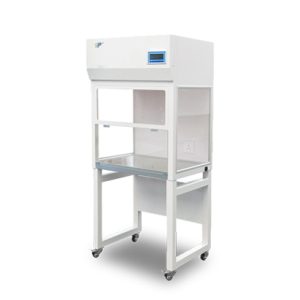

Model: T-PCR-1S

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1)：700*510*580mm

Overall dimension (W*D*H)：860*590*1620mm

Number of users: Single Person/Single Side

HEPA filtration system: A positive pressure HEPA filtration system, which can form an uninterrupted ISO Class 5 air clean area in the sample preparation area.

The cavity can accommodate tube racks, racks, pipettes, microcentrifuges and thermal cyclers.
